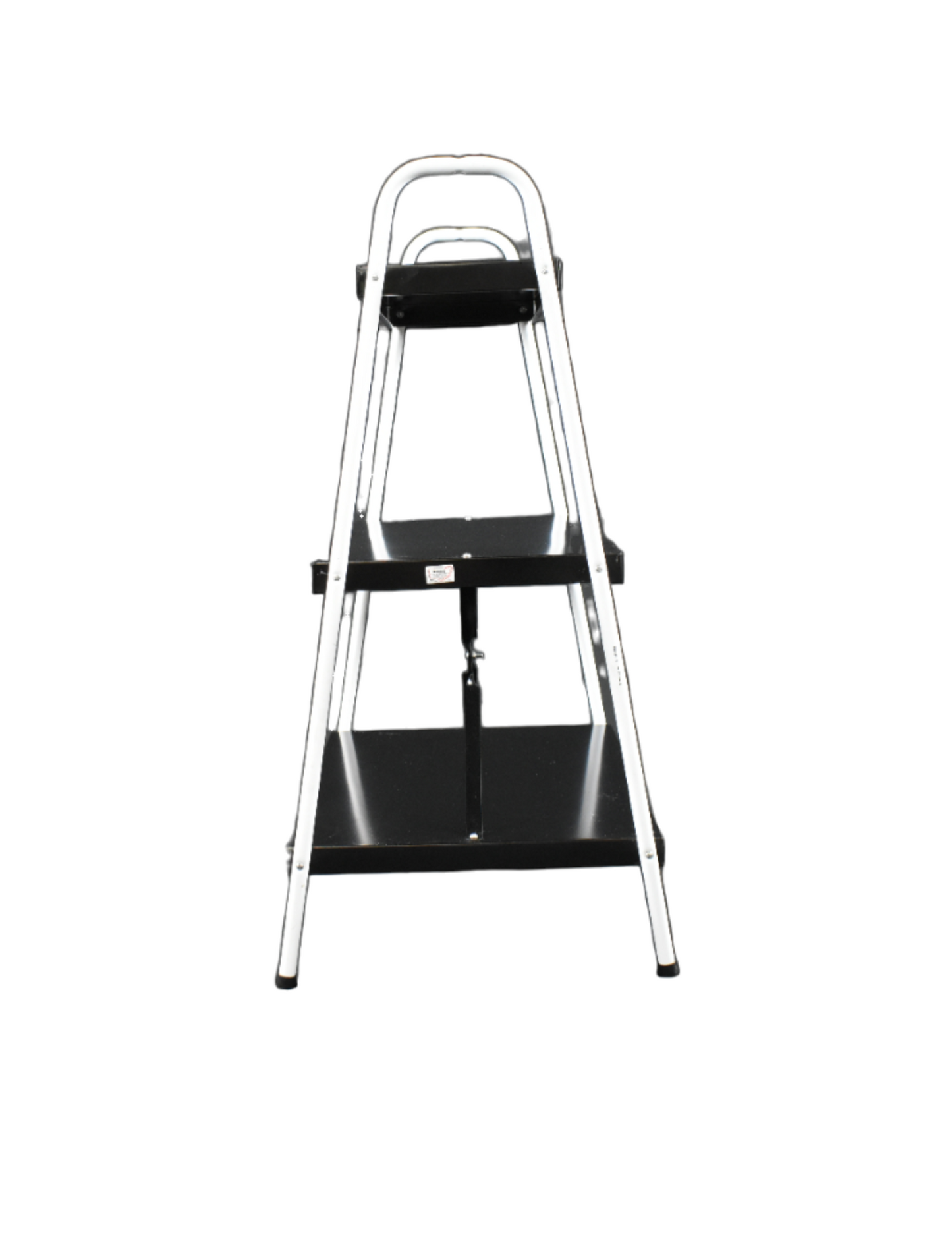

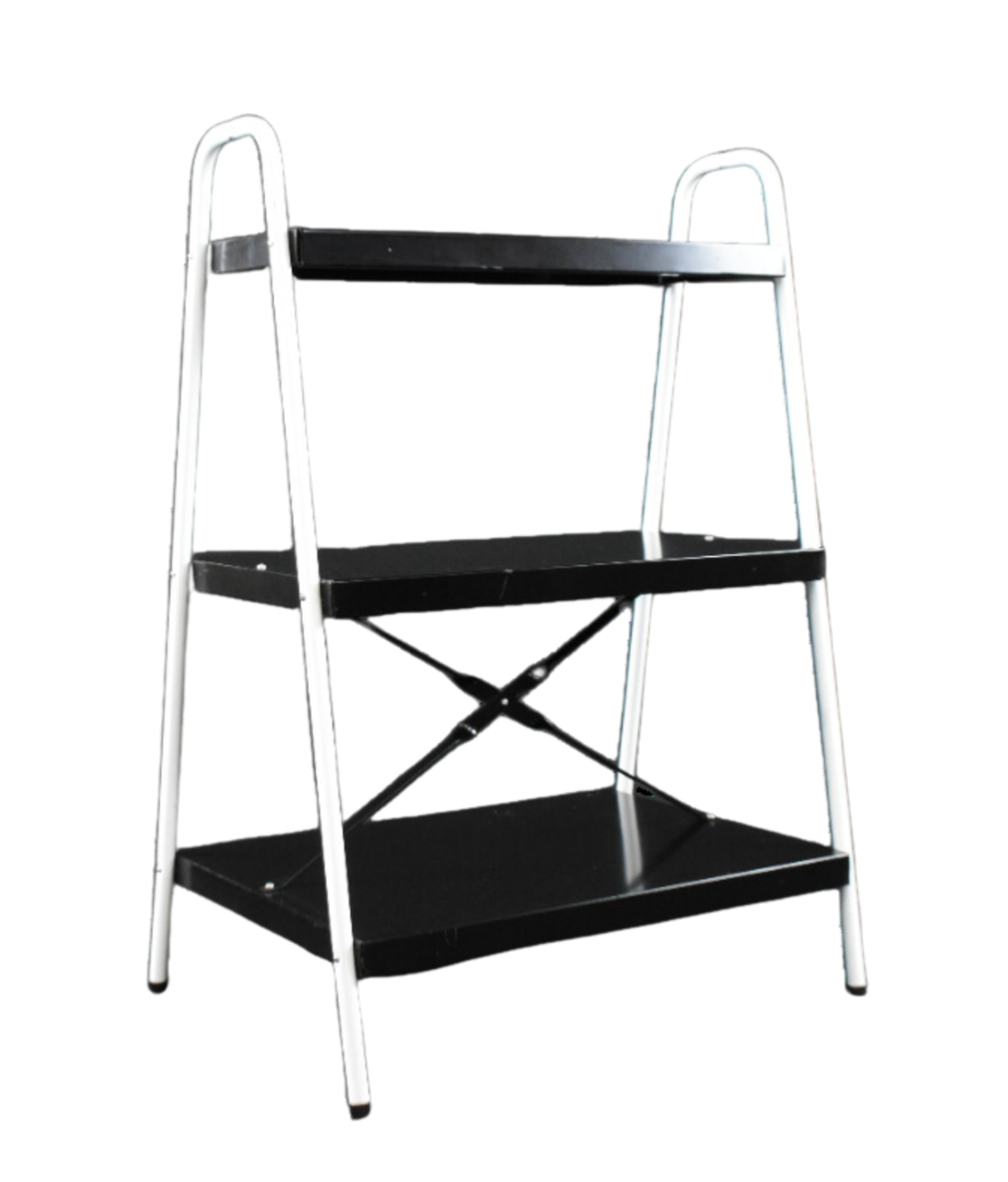

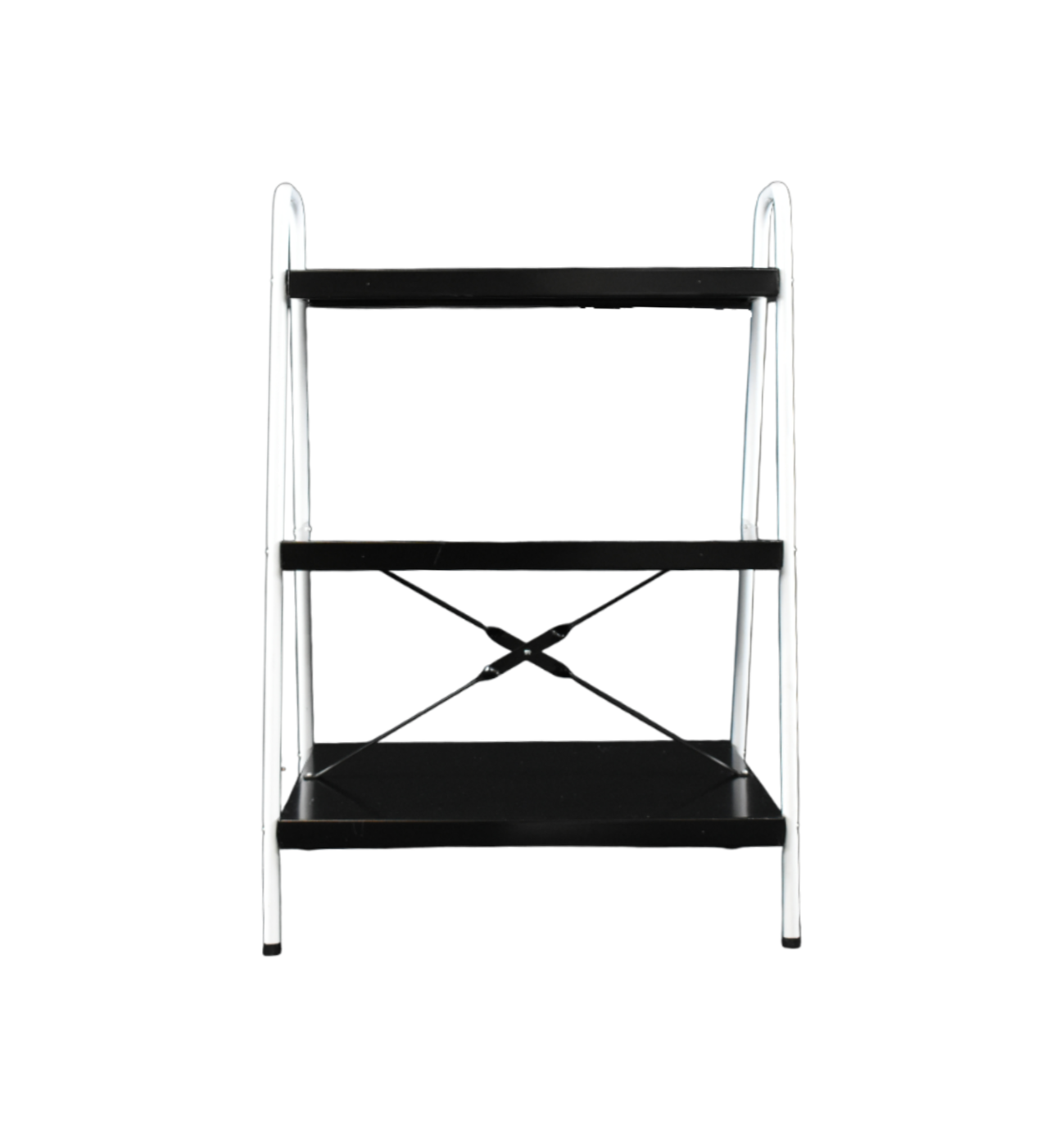

This sturdy battery display rack holds up to ten batteries, showing them from the front and back for better customer attraction.
- All-steel construction.
- Finished with durable baked enamel - white end frames, black shelves.
- "Label Tracks" attach easily to shelf faces, (Use 2" product information strips or price cards). Order one set of (3) Label Tracks for one-face displays, (2) sets for two-sided displays.
SPECIFICATIONS – No. 1187 Stationary 10-Battery Rack
Depth: 20” (at floor)
Height: 37-1/4” to top of frame; 50” to top of optional sign.
Tubing: 3/4” OD x 18 gauge welded steel.
Shelves: 20 gauge cold rolled steel, double flanged all around; optional 24 gauge
steel label track can be ordered for attachment on one or both faces of each
shelf (will accommodate 2” labels or 2” x 24” label strips). All shelves
24” wide; top shelf is 9” deep, middle shelf is 14” deep, bottom shelf is
X-Brace: 3/4” x 12 gauge steel, attached between two lower shelves for maximum
Fasteners: Bright zinc plated; nuts are hardened spring-prong type. Self-tapping
screws are supplied for attachment of label tracks.
Finish: Baked enamel, after thorough cleaning and phosphatizing. Frame is gloss
white, shelves are gloss black.
Sign (optional): 20 gauge cold rolled steel, 7-1/2” x 24-1/2” (copy area is limited to
6-3/4” x 21-1/2”). Cleaned and phosphatized before finishing. Base color, screened copy, and clear top coat are all baked for durable long-lasting finish. Base color white with copy color(s) as specified. Copy applied both sides unless otherwise specified.
NOTE: Please request quotation on signs, giving information about colors, copy required, and quantity. Customer is expected to supply artwork or copy layout, either full size or proportionate, suitable for photo reproduction without cleanup.
Sign Mounting Pins: No. 3 steel wire, bright zinc plated.
