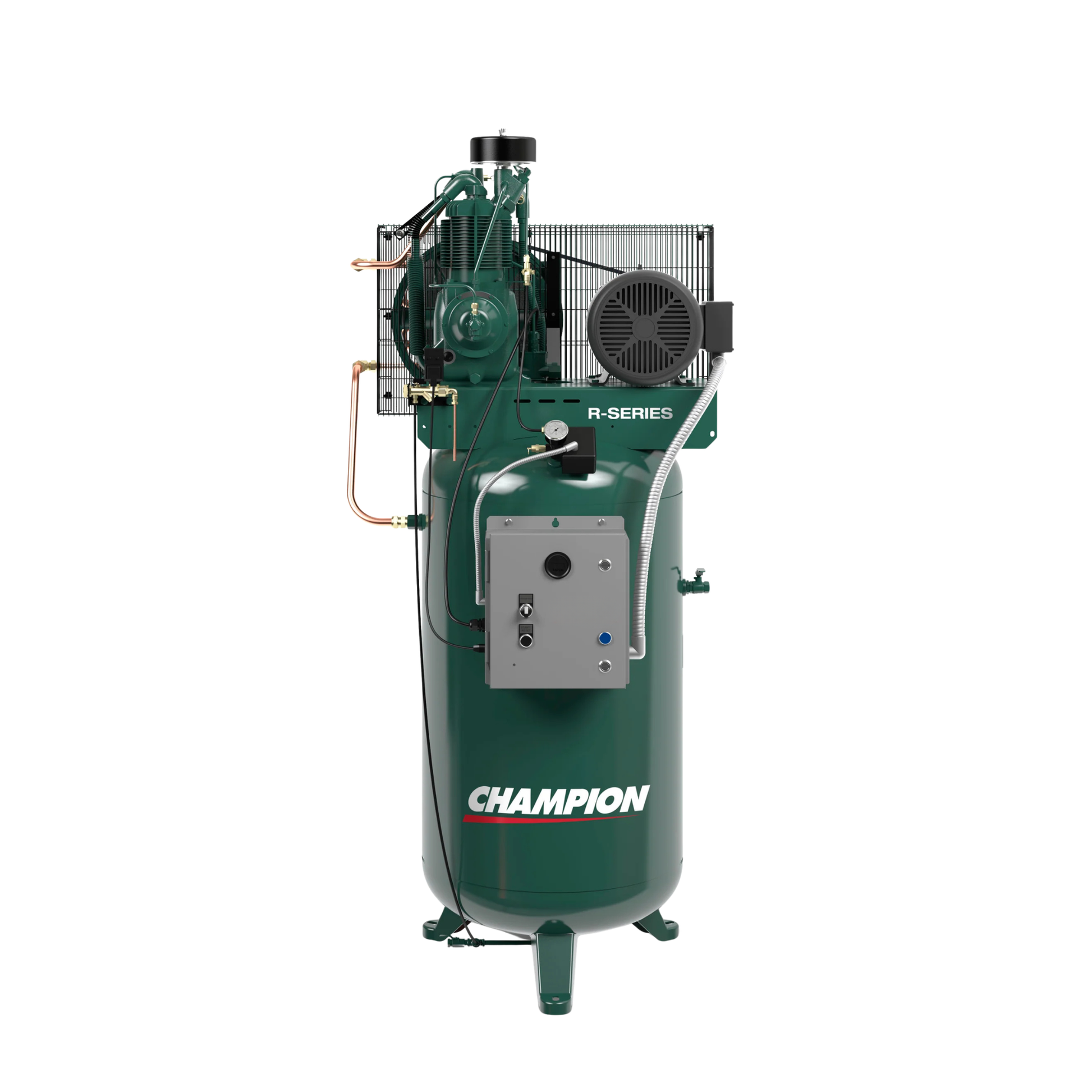

Champion R-Series VR5-8 Reciprocating Air Compressor

Champion R-Series Compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value. Champion compressors are the proven choice!

View the Product Brochure here.

Standard Features

• Load-less starting (via centrifugal unloader) for lower energy costs and less wear on drive motor
• ASME inter-stage pressure relief valve for protection
• ODP NEMA 1760 RPM electric motor
• 10 Micron industrial grade intake filter
• ASME coded receiver
• 0-300 PSIG air pressure gauge on tank
• Available voltages
  • Single phase-115/208-230
  • Three phase-208/230/460/575

Available Options

• Multiple tank sizes and variations
• Electric or engine driven
• NEMA 4 full-voltage starter upgrade
• ODP HE/TEFC/TEFC HE motor upgrades
• Control panel upgrades
• Air-cooled with or without moisture separator
• Low oil-level monitor (NEMA 1 or 4)
• Dual control
• Vibration isolators
• Synthetic lubricant
• High temperature switch (NEMA 1 or 4)
• Available switches (NEMA 1 or 4)
  • Test/Off/Auto
• Automatic tank drain - Electric

Specifications:

• 2 - 30 HP
• Up to 175 PSIG
• 4.2 - 202 ACFM at 175 PSIG on electric driven units
• Mounted Dryer/AirStation option with XCNC dryer available on certain select simplex models
• Gas and diesel engine drive models available
• Tank or Base Mounted, Simplex & Duplex Models
• Two Stage Splash-Lubricated Pumps
• 3 year standard warranty with the option for a 6 year extended warranty
• Factory filled with ChampLub lubricant
