Twelve Thousand Pounds Never Lifted So Easily

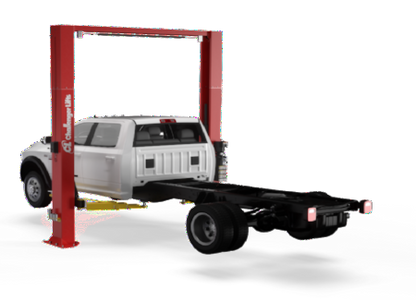

- The Challenger CL12 garage lift system is ideal for full-service auto shops and commercial garages.
- Three-stage front and rear arms make it easy to accommodate a wide range of vehicles, including cars, trucks, vans, and SUVs — all in the same service bay.
- Get increased durability from geared arm restraints, steel pulleys, single-point mechanical lock release, and other great features.

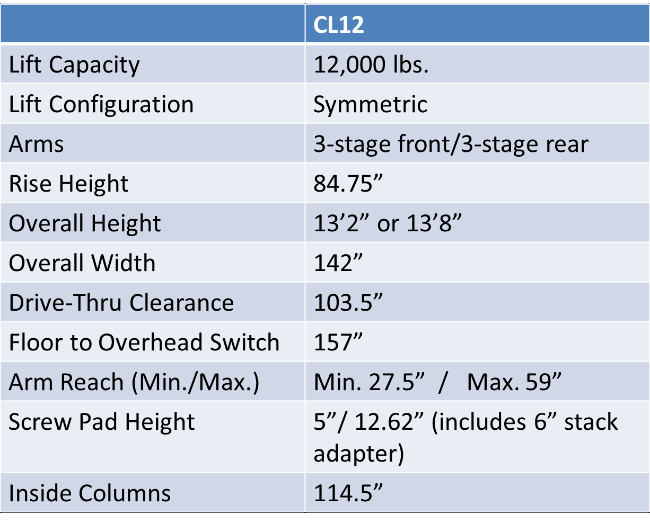

- 12,000 lb. lift capacity
- 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
- 60″ lifting carriage design increases lift life
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Padded overhead shut off system prevents vehicle damage
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Premium powder coat finish provides long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
Bay Height: 14’ minimum
Bay Width: 14’ recommended
Bay Depth: 24’ recommended
Power Requirements: 208-230v Single Phase, 30-amp breaker
Min. Concrete Spec: 4” thick, reinforced, free from cracks/seams, rated at 3500+ psi, cured at least 28 days
- Great for Full Service Shops
- Adjustable Height
- 103.5" Drive Thru Clearance
