Description

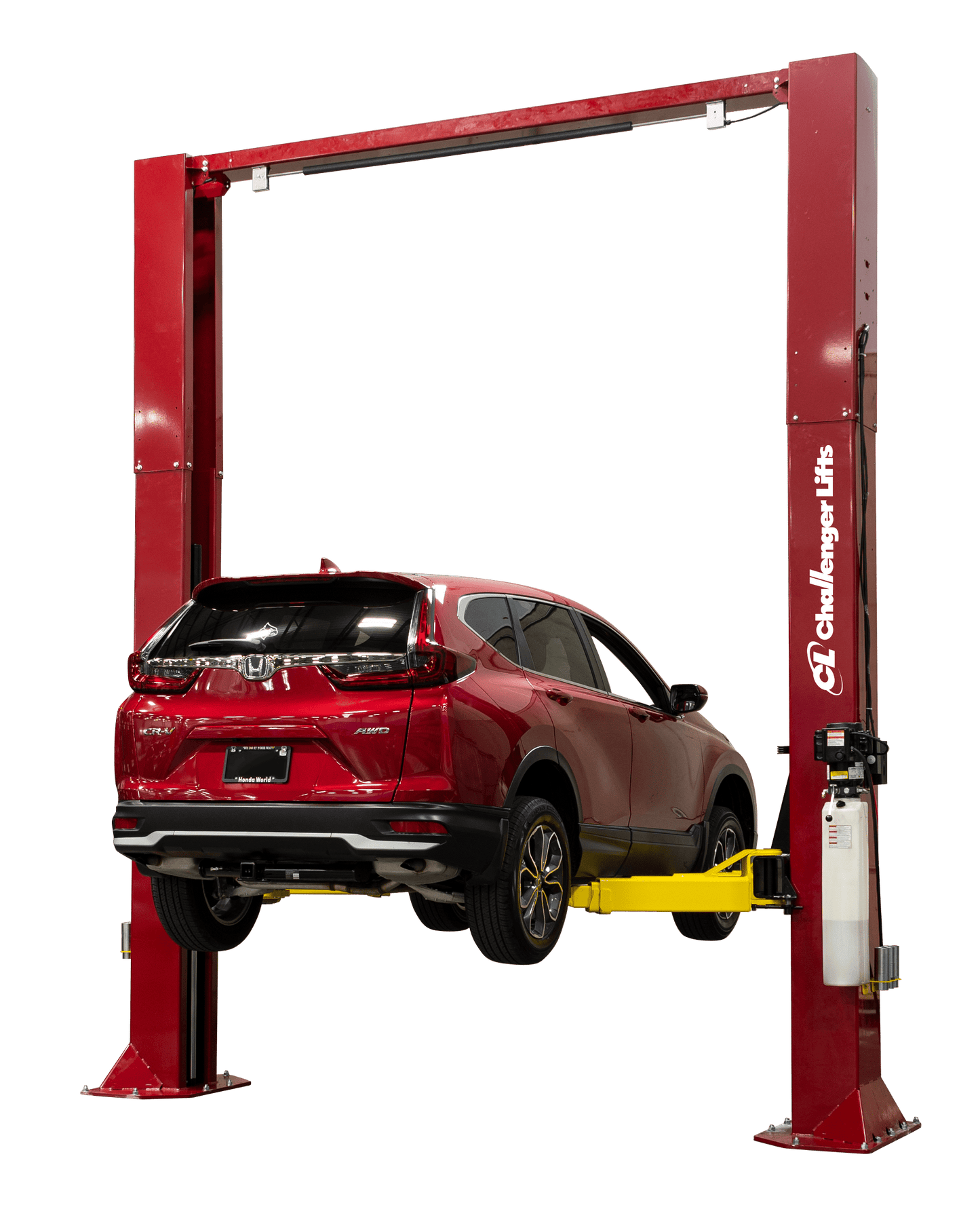

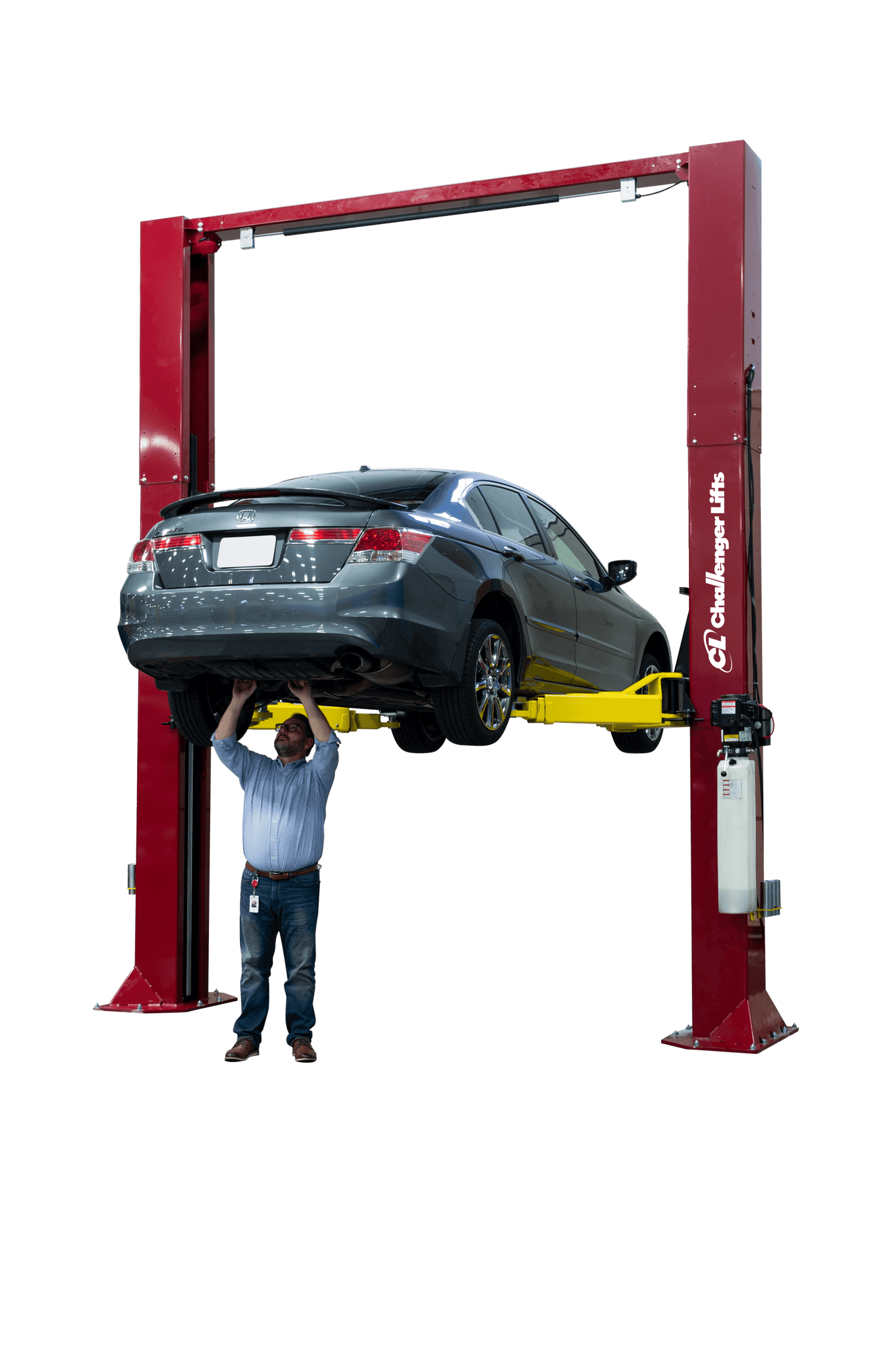

Challenger’s Heavy-Duty 2-Post lifts boast optimum flexibility with a lift designed from the anchors up to meet ALI/ANSI safety standards. These lifts have a capacity of 16,000lbs or 20,000lbs and can lift everything from compact cars to tall, heavy trucks. All put together, this lift is built to withstand the toughest of fleet maintenance.

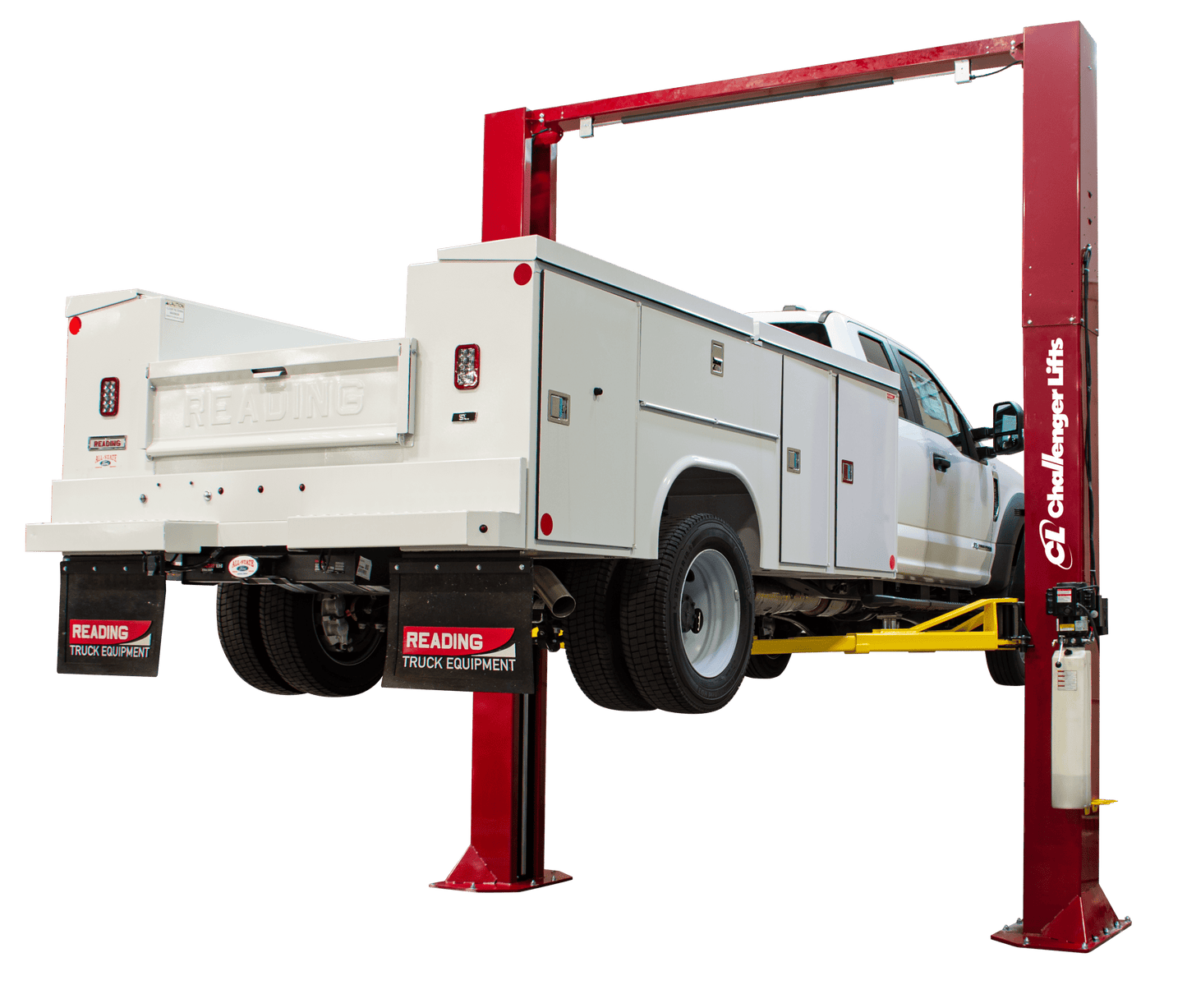

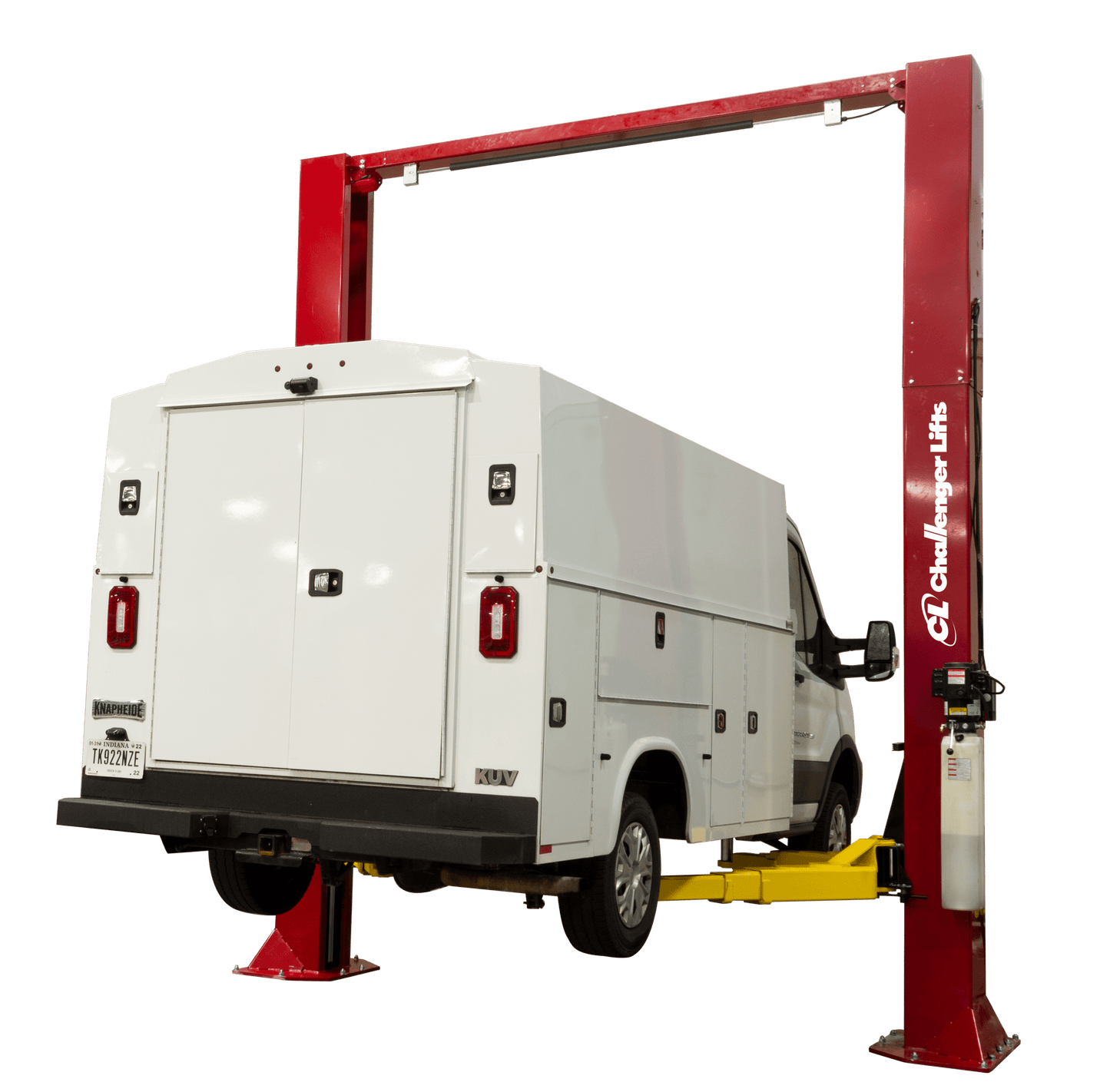

The CL16-3S has the capacity and height required to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically. Additionally featuring low profile pickup pads and an adjustable width and height. 2ft height extensions are available for additional clearance.

ALI/ETL certified.
Features & Benefits
• Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
• Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
• Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
• 60” lifting carriage design increases lift life.
• Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
• Dual integrated rubber door guards to prevent door damage.
Specs
Model Number CL16-0-3S CL16-2-3S CL20-0 CL20-2
Description 16K Standard 16K Extended Height 20K Standard 20K Extended Height
Lifting Capacity 16,000 lbs. 16,000 lbs. 20,000 lbs. 20,000 lbs.
Lift Configuration Symmetric Symmetric Symmetric Symmetric
Arm Configuration 3-Stage Front/Rear 3-Stage Front/Rear 2-Stage Front/Rear 2-Stage Front/Rear
Maximum Load Per Arm 4,000 lbs. 4,000 lbs. 5,000 lbs. 5,000 lbs.
Rise Height (Maximum with Stack Adapters) Min. 75.5" Max. 81.5" Min. 75.5" Max. 81.5" Min. 76.6" Max. 84.6" Min. 76.6" Max. 84.6"
Overall Height Options 162", 168", 174" 186", 192", 198" 162", 168", 174" 186", 192", 198"
Overall Width Options 166.75", 160.75", 154.75" 166.75", 160.75", 154.75" 166.75", 160.75", 154.75" 166.75", 160.75", 154.75"
Drive-Thru Clearance 104.25", 110.25", 116.25" 104.25", 110.25", 116.25" 104.25", 110.25", 116.25" 104.25", 110.25", 116.25"
Floor to Overhead Switch 155", 161", 167" 179", 185", 191" 155", 161", 167" 179", 185", 191"
Arm Reach Min. 36.625" Max. 75" Min. 36.625" Max. 75" Min. 38.5" Max. 62" Min. 38.5" Max. 62"
Screw Pad Height Min. 4.75" Max. 6.5" Min. 4.75" Max. 6.5" Min. 6.2" Max. 7.6" Min. 6.2" Max. 7.6"
Between Columns 120", 126", 132" 120", 126", 132" 120", 126", 132" 120", 126", 132"
Motor/Voltage 3HP, 1Ph, 60Hz, 208/230v 3HP, 1Ph, 60Hz, 208/230v 3HP, 1Ph, 60Hz, 208/230v 3HP, 1Ph, 60Hz, 208/230v
Air Supply Required 90-120 psi 90-120 psi 90-120 psi 90-120 psi
Rise Time 62s 62s 62s 62s
Min. Ceiling Height Required 13'8", 14'2", 14'8" 15'8", 16'2", 16'8" 13'8", 14'2", 14'8" 15'8", 16'2", 16'8"
Accessories
Productivity Accessories
Part No. Description
10317 Reducer bushing kit
10333 Sprinter adapter kit - includes (2) pin adapters and (2) cradle adapters for 15000-3S series only
B10264A Air/electric workstation with filter/lubricator/regulator
B99700 Tire Tool Manager Work Station with filter/lubricator/regulator
Power Upgrades
Part No. Description
3PH217 Power Unit Upgrade to 3-Phase - 208V
3PH239 Power Unit Upgrade to 3-Phase - 230V
3PH469 Power Unit Upgrade to 3-Phase - 460V
