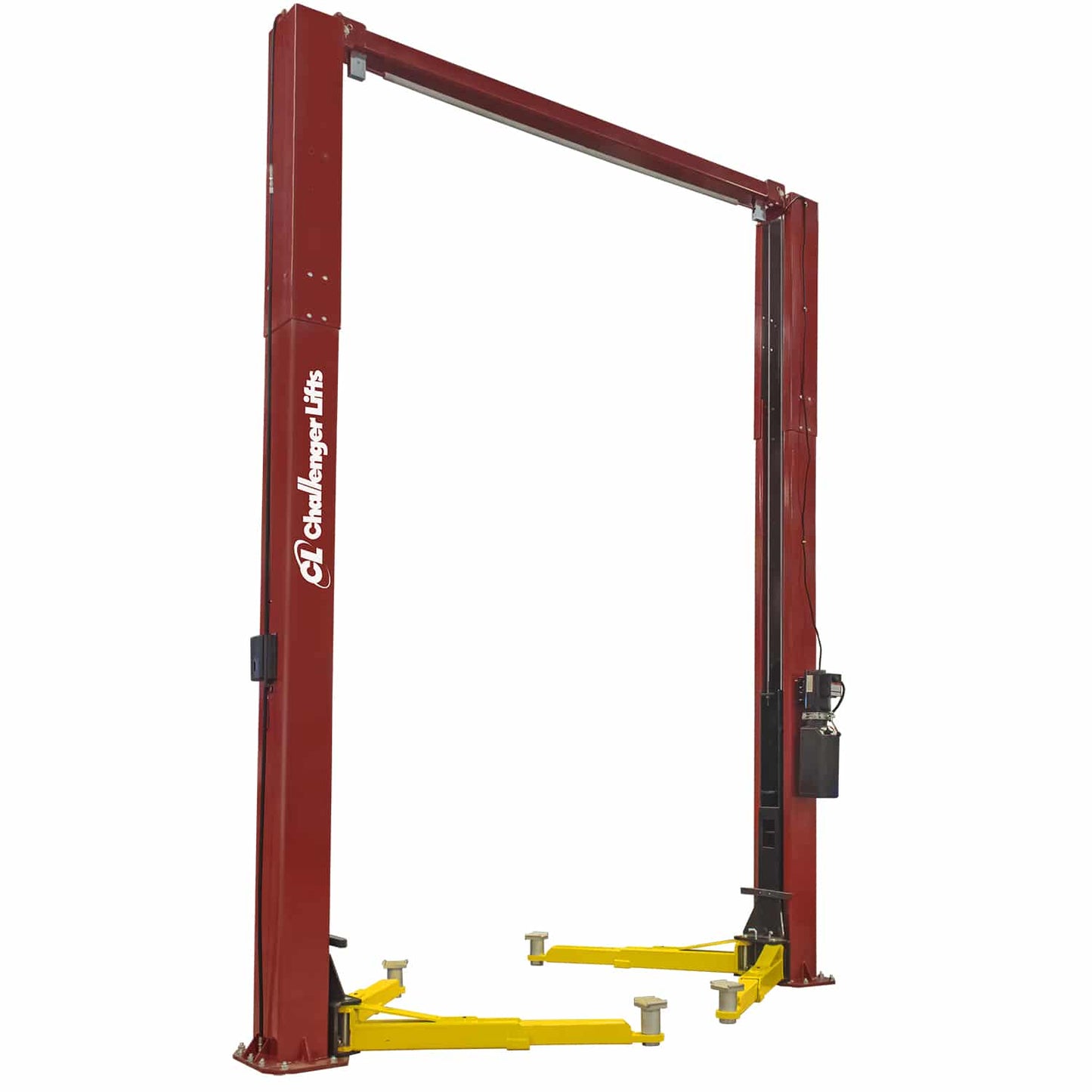

Challenger E15 2-Post Lift
Challenger E15 2-Post Lift
  • Load image into Gallery viewer, Challenger E15 2-Post Lift
  • Load image into Gallery viewer, Challenger E15 2-Post Lift

Challenger E15 2-Post Lift

Regular price
Sale price
Regular price
Call for your special price 717-432-5672
Unit price
per

Description

We designed our new E15 2-post lift to be an economic option for servicing vehicles up to 15,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Includes a built-in 2 foot column height extension to accommodate higher profile vehicles. The E15 also comes standards with stack adapters.

This lower cost option doesn’t sacrifice the features you’ve come to expect. The jacketed single-point mechanical lock release system was once exclusive to our CL Series.

ALI/ETL certified.
Features and Benefits
• 15,000 lb. lift capacity
• Heavy-duty 2-stage arms enable heavy-duty symmetric lifting
• Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
• Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series
• Padded overhead shut off system prevents vehicle damage
• Powder coat finish provides long-lasting durability
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

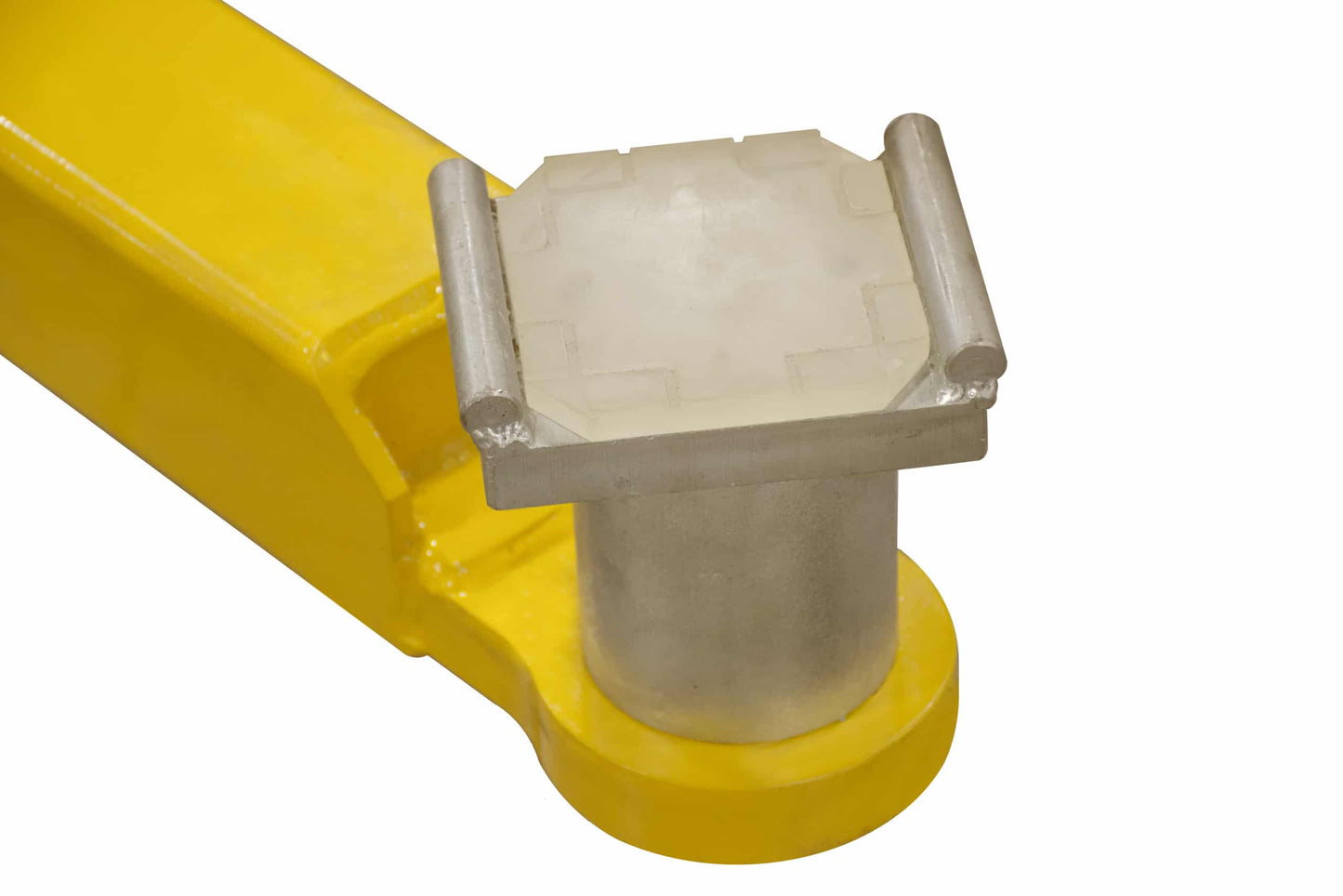

• Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Specs
Model Number E15
Lifting Capacity 15,000 lbs.
Arms 2-stage front/2-stage rear
Lifting Configuration Symmetric
Rise Height 77.75”
Overall Height 174”/198”
Overall Width 147.125”
Drive-Thru Clearance 109.375”
Floor to Overhead Switch 166”/190”
Minimum Arm Reach 36.5”
Maximum Arm Reach 55”
Screw Pad Height 5.25”-6.75”
Inside Columns 122.25”
Ceiling Height Required 175”/199”
Motor / Voltage 2HP, 208v - 230v
Speed of Rise 75 s
ALI/ETL Certified Yes
Colors Available Red, Blue
Accessories
Productivity Accessories
Part No. Description
10317 Reducer bushing kit
B10264A Air/electric workstation with filter/lubricator/regulator
B99700 Tire Tool Manager Work Station with filter/lubricator/regulator
Power Upgrades
Part No. Description
3PH217 Power Unit Upgrade to 3-Phase - 208V
3PH239 Power Unit Upgrade to 3-Phase - 230V
3PH469 Power Unit Upgrade to 3-Phase - 460V
