Advantage AL-SF10 2-Post Floor Plate / Symmetric Lift
Advantage AL-SF10 2-Post Floor Plate / Symmetric Lift
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
per
Description
The Advantage AL-SF10 2-post lift matches the tremendous quality our 4-post lifts are known for. This floor plate lift is a perfect option for those who want a lift, but do not have the ceiling height for an overhead model. The Advantage AL-SF10 has a lower minimum pad height then most lifts allowing for cars with lower clearance to be loaded with ease. Stack Adapters Included.

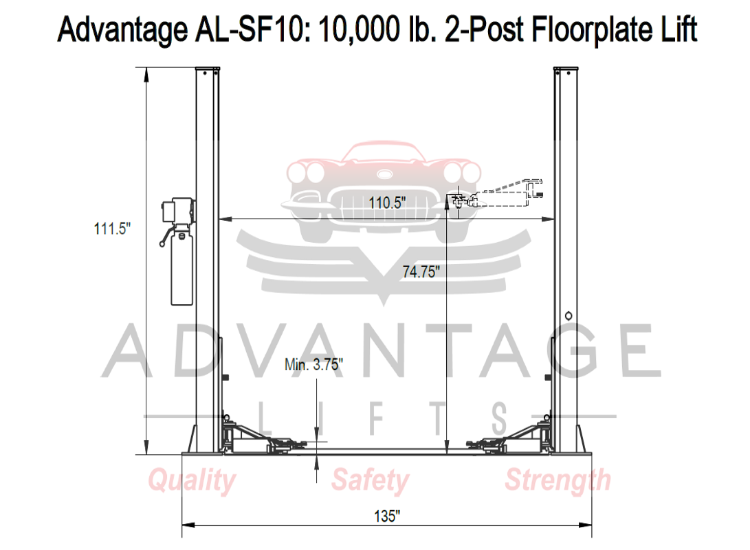

Specs
| Capacity | 10,000 lbs. | ||||
| Assembled Shipping Dimensions | 9' 3.25" Tall 11' 3" Wide (With Motor) Long |
||||
| Shipping Dimensions | 2' 6" Tall 1' 8" Wide 9' 6" Long |
||||
| Shipping Weight | 1,465 lbs. | ||||
| Motor | 240 Volt 20 Amp | ||||
| Lift Configuration | Symmetric | ||||
| Arm Type | 3 Stage Front/Rear | ||||

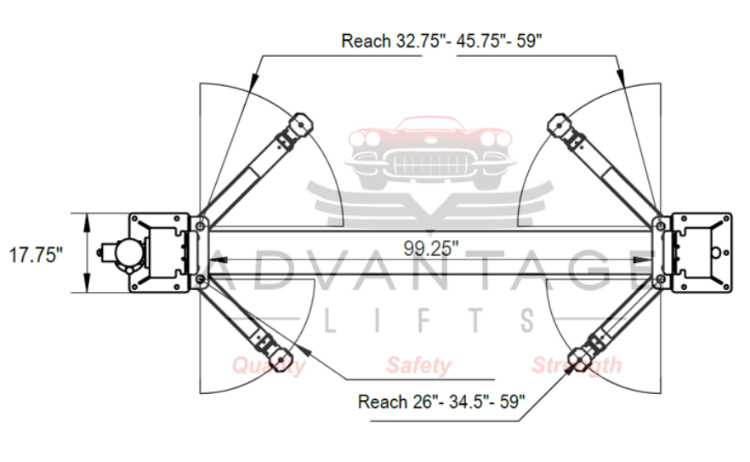

| Front Arm Reach | 24.75" - 42.5" | ||||
| Rear Arm Reach | 31.25" - 59" | ||||
| Min. Pad Height | 3.75" | ||||
| Max Clearance | 6' 2.75" | ||||
| Drive Thru Clearance | 8' 5.5" |
