Description

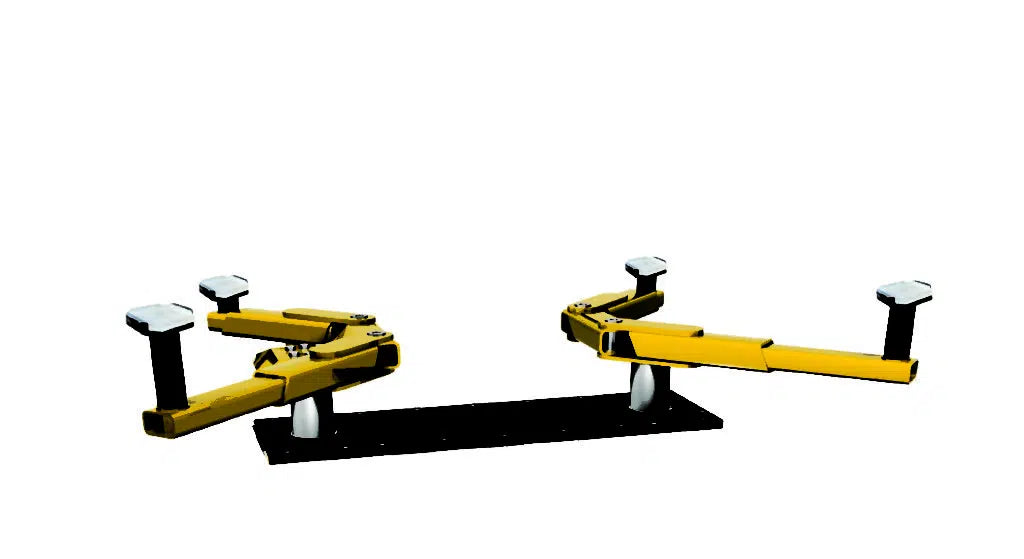

Challenger’s electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We’ve also added our time-tested productivity tools, including Quick Cycle Technology and Bench Mount Controls to boost your efficiency.
ALI/ETL certified.
Features & Benefits
• 12,000 lb. lift capacity
• 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks within the service bay, maximizing revenue potential
• 8 1/2” diameter chrome pistons provide greater stability under load
• Chrome non-breathing ram style cylinder provides for longer lift life
• Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
• Long bearing contact provides increased stability
• Mechanical lock engages every 3? allows ergonomic working height for technicians to increase productivity and minimize fatigue
• Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
• Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
• Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
• 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
• Wide range of upgrades to further customize your fleet
• Premium powder coat finish on bolsters and arms provides long-lasting durability
Specs
| Model Number | EV1220 | ||||
| Lifting Capacity | 12,000 lbs. | ||||
| Arms | 3-stage front/3-stage rear | ||||
| Stroke | 68” | ||||
| Rise Height | 80.75” | ||||
| Width Overall | 115” | ||||
| Drive-Thru Clearance | 87” | ||||
| Reach (Arm Minimum) | 19.625” | ||||
| Reach (Arm Maximum) | 48” | ||||
| Screw Pad Height | 5” - 6.75” | ||||
| Capacity | 3,000 lbs. per arm | ||||
| Guide Plunger Diam. | 8.5” | ||||
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | ||||
| Speed of Rise | 60 s | ||||
| Air Required |
90 - 120 psi |
||||
| ALI/ETL Certified | Yes | ||||
| Super Structure Colors |
Red, Blue, Black |
| Accessories | |||||||||
| Part No. | Description | ||||||||
| 16902 | Bench Mount Lever (BML) | ||||||||
| 10313 | Pair of 6" Stack Adapter Extensions | ||||||||
| 10315 | Stack Adapter Kit - includes (4) 3 in. stack extensions, (2) 6 in. stack extensions & (2) organizer racks with hardware | ||||||||
| 15060 | Floor-mounted Power Unit Stand | ||||||||
| SD100 | Cassette Lift Automatic Liquid Removal System | ||||||||
| CSGREASE | Extra Tube of Grease for Electric / Hydraulic Inground Lifts | ||||||||
| 3PHCS | Power Unit Upgrade to 3-Phase | ||||||||
