Description

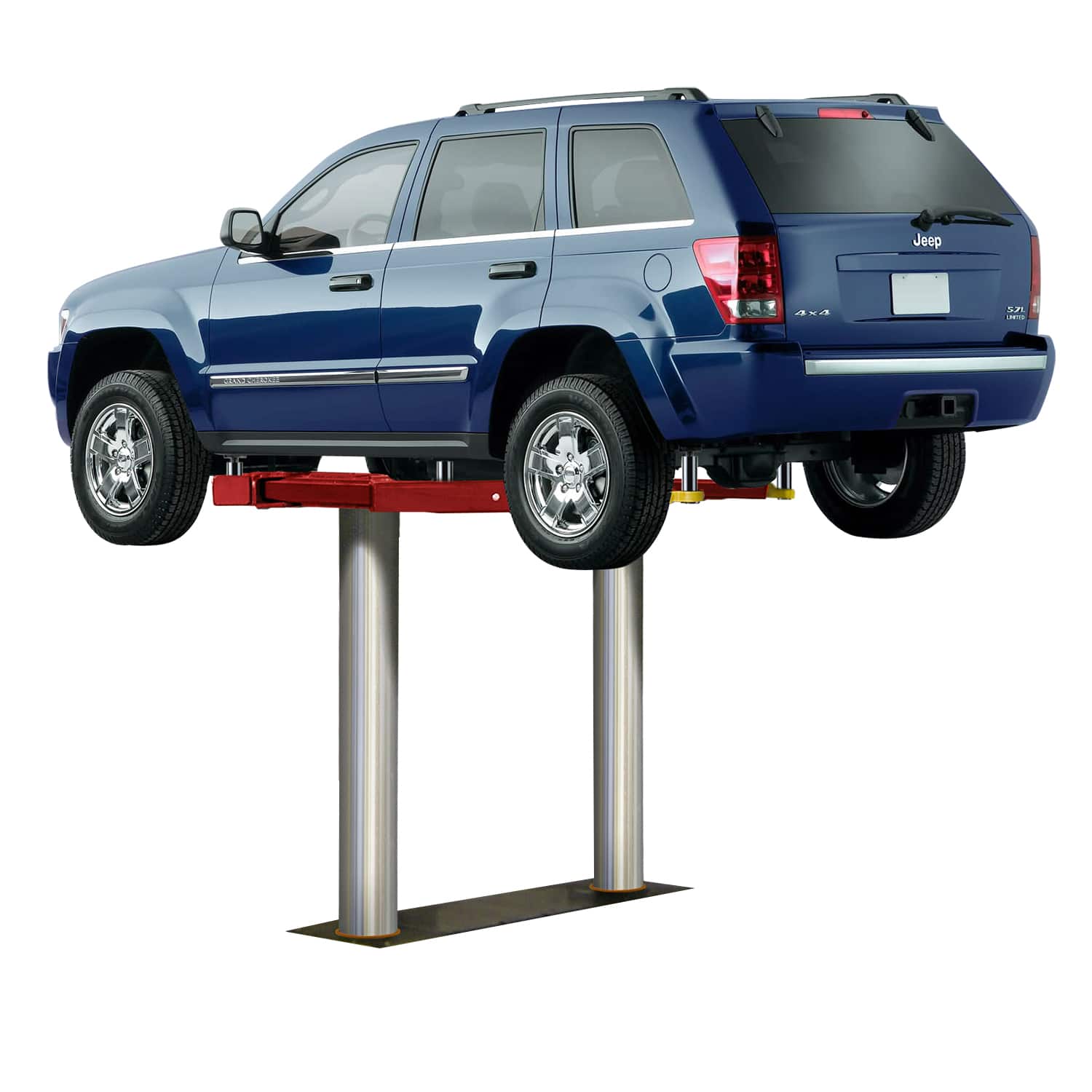

Challenger’s electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We’ve also added our time-tested productivity tools, including Quick Cycle Technology and Bench Mount Controls to boost your efficiency.

ALI/ETL certified.

Features & Benefits
• 12,000 lb. lift capacity

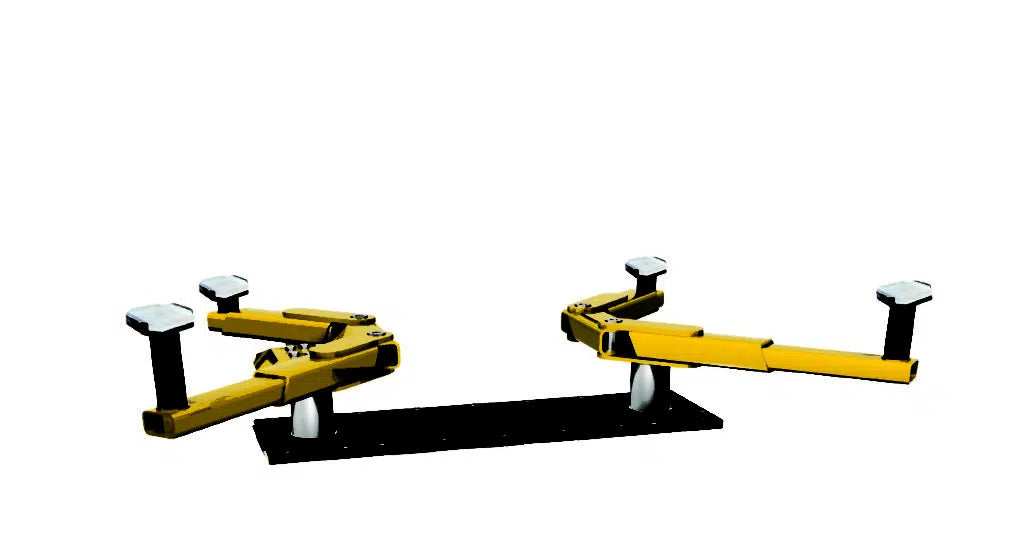

• 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks within the service bay, maximizing revenue potential

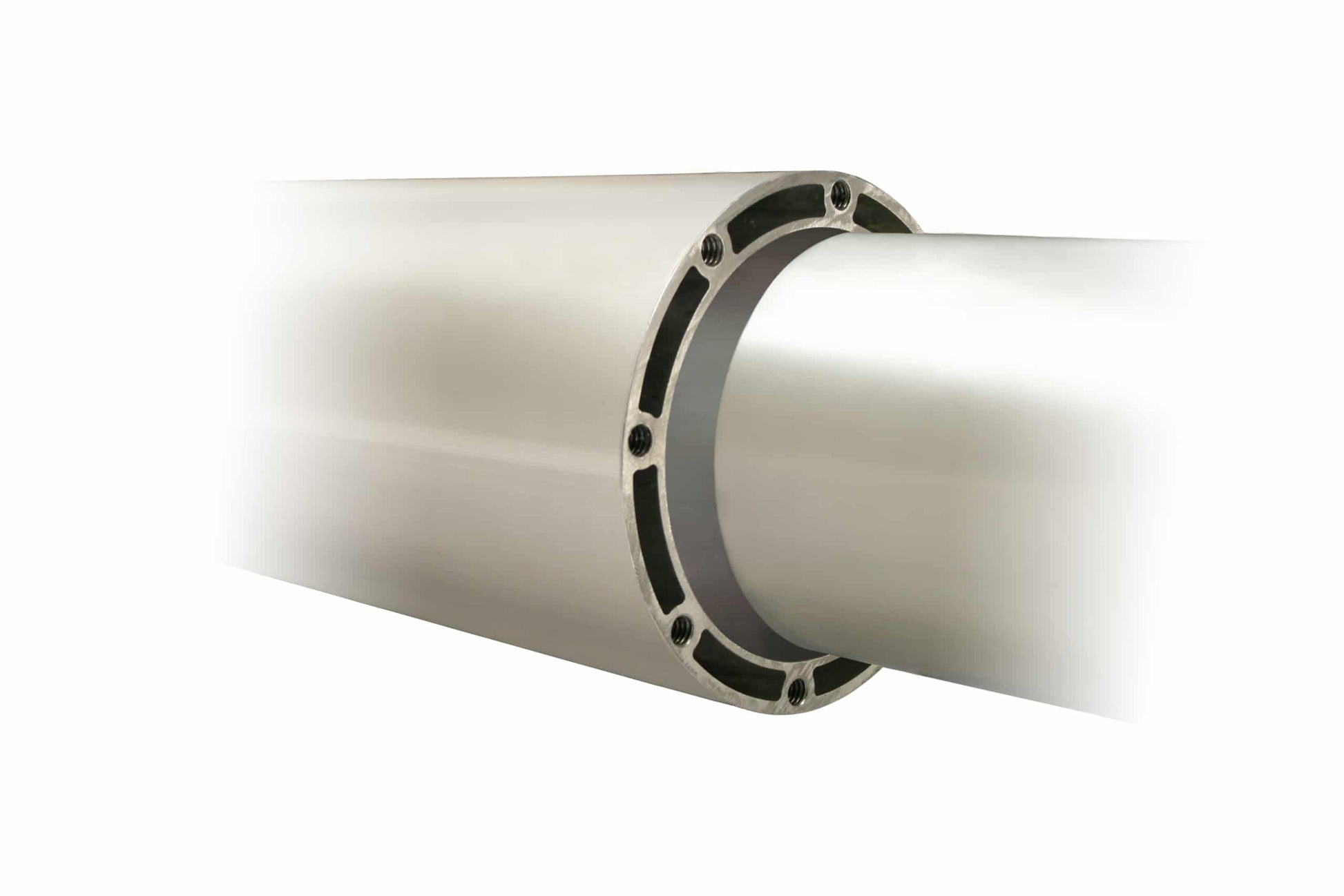

• 8 1/2” diameter chrome pistons provide greater stability under load
• Chrome non-breathing ram style cylinder provides for longer lift life
• Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
• Long bearing contact provides increased stability

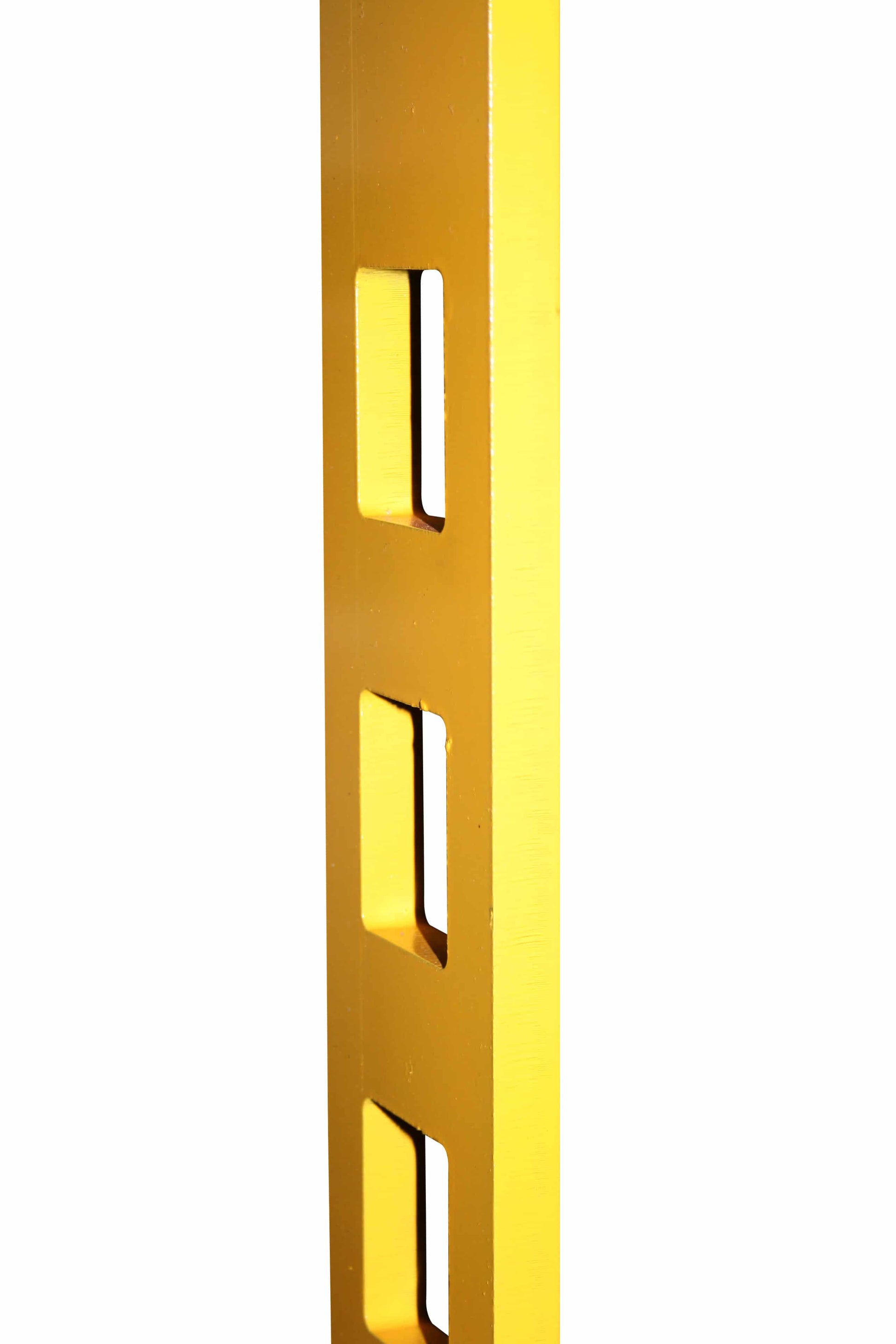

• Mechanical lock engages every 3? allows ergonomic working height for technicians to increase productivity and minimize fatigue
• Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
• Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
• Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
• 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
• Wide range of upgrades to further customize your fleet
• Premium powder coat finish on bolsters and arms provides long-lasting durability
Specs
Model Number EV1220
Lifting Capacity 12,000 lbs.
Arms 3-stage front/3-stage rear
Stroke 68”
Rise Height 80.75”
Width Overall 115”
Drive-Thru Clearance 87”
Reach (Arm Minimum) 19.625”
Reach (Arm Maximum) 48”
Screw Pad Height 5” - 6.75”
Capacity 3,000 lbs. per arm
Guide Plunger Diam. 8.5”
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 60 s
Air Required 90 - 120 psi
ALI/ETL Certified Yes
Super Structure Colors Red, Blue, Black
Accessories
Part No. Description

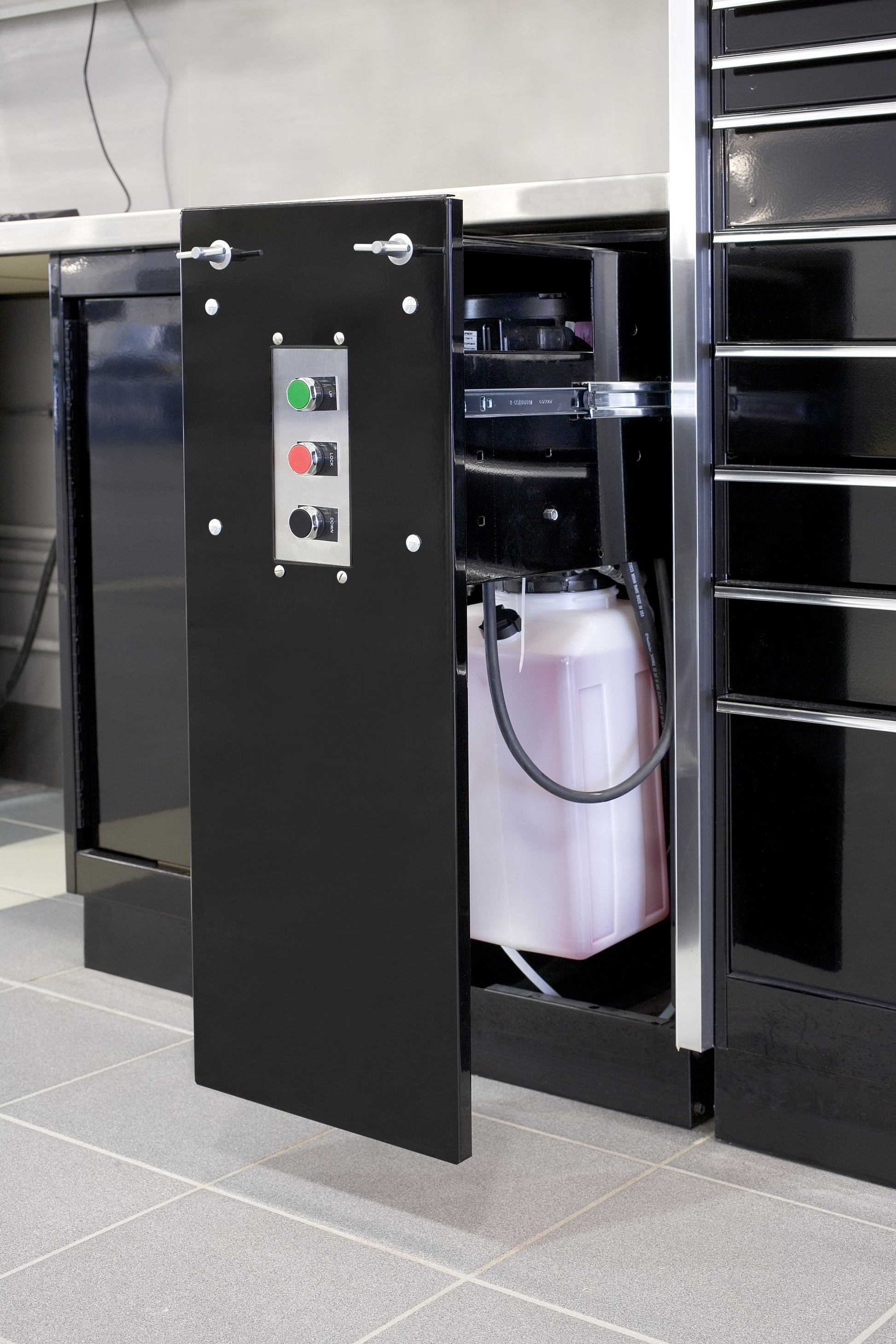

16902 Bench Mount Lever (BML)
10313 Pair of 6" Stack Adapter Extensions
10315 Stack Adapter Kit - includes (4) 3 in. stack extensions, (2) 6 in. stack extensions & (2) organizer racks with hardware
15060 Floor-mounted Power Unit Stand
SD100 Cassette Lift Automatic Liquid Removal System
CSGREASE Extra Tube of Grease for Electric / Hydraulic Inground Lifts
3PHCS Power Unit Upgrade to 3-Phase
