Challenger LE12 2-Post Lift

Regular price
Sale price
Regular price
Call for your special price 717-432-5672
Unit price
per

Description

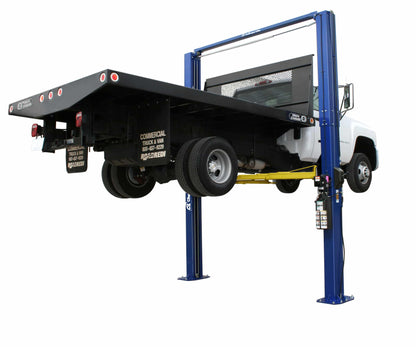

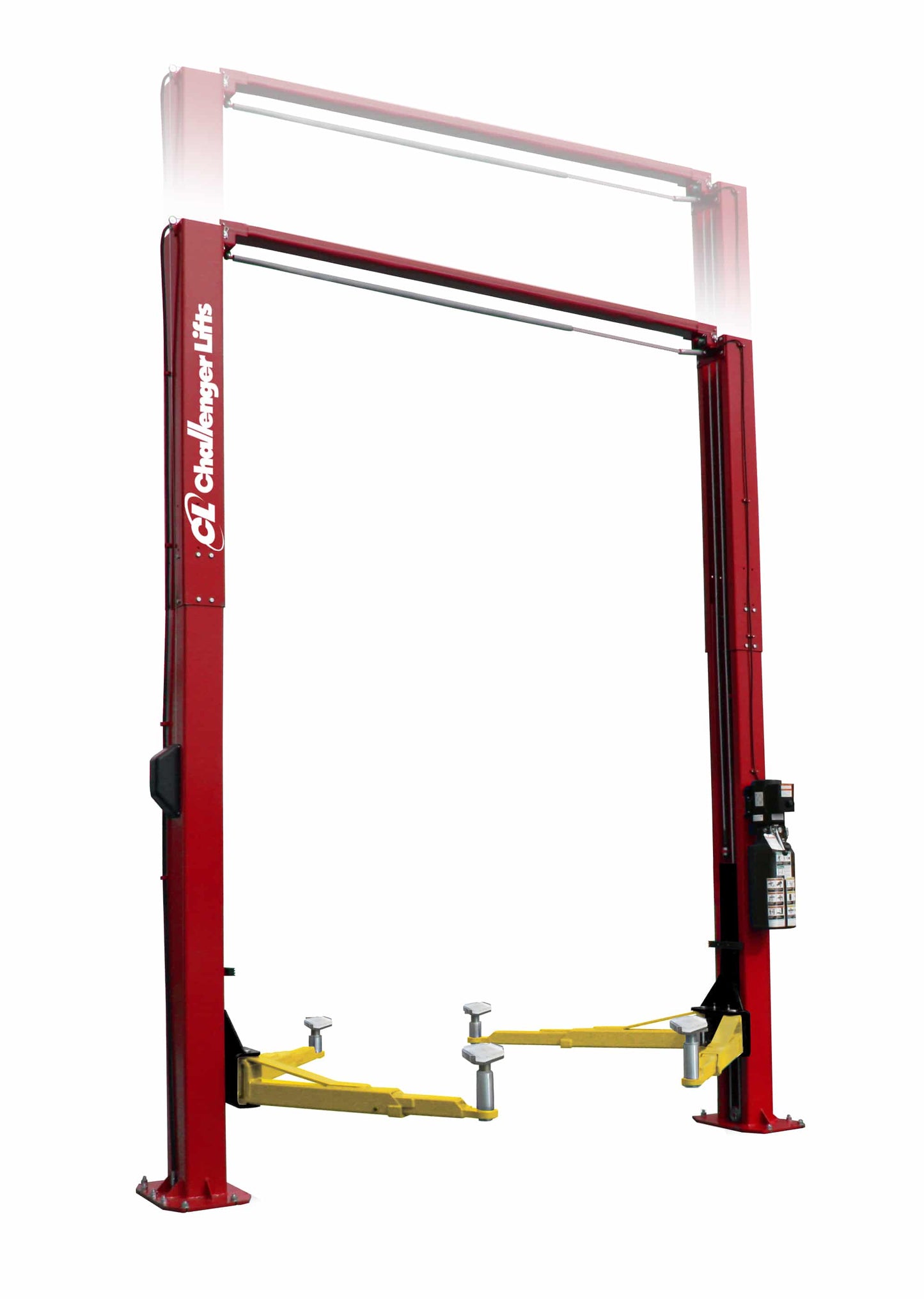

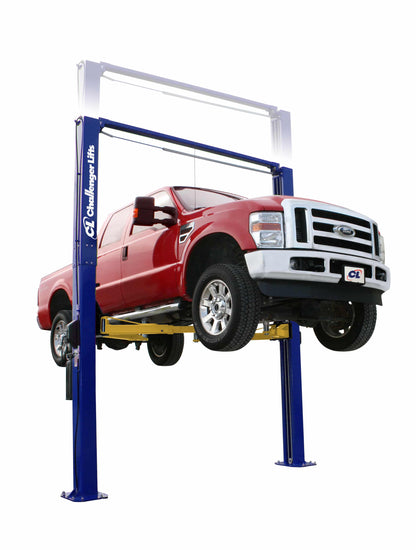

Challenger’s LE12 is the perfect economic 2-post lift for servicing trucks and other vehicles up to 12,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Also, adjustable column height accommodates higher profile vehicles while providing ample servicing headroom. The LE12 comes standards with stack adapters. Accommodate higher profile vehicles with optional 2 foot column extensions.

ALI/ETL certified.
Features & Benefits

Specs

Model Number E12
Lifting Capacity 12,000 lbs.
Arms 2-stage front/2-stage rear
Lifting Configuration Symmetric
Rise Height 77.75”
Overall Height 166”/175”
2’ Height Extension Available Yes
Overall Width 139.75”
Drive-Thru Clearance 103”
Floor to Overhead Switch 159.5”/168.5”
Minimum Arm Reach 35.75”
Maximum Arm Reach 54.5”
Screw Pad Height 5.25”-6.75”
Inside Columns 115”
Ceiling Height Required 167”/176”
Motor / Voltage 2HP, 208v - 230v
Speed of Rise 61 s
ALI/ETL Certified Yes
Colors Available Red, Blue


Accessories
Footpad Accessories
Part No. Description
B2280PR NEW wide frame footpad
10313 Pair of 6 in. stack adapter extensions
10315 Stack adapter kit - includes (4) 3 in. Stack Extensions, (2) 6 in. Stack Extensions & (2) Organizer Racks with hardware
10316 Organizer rack for stack adapter extensions
Productivity Accessories
Part No. Description
B10264A Air/electric workstation with filter/lubricator/regulator
B99700 Tire Tool Manager Work Station with filter/lubricator/regulator
TR-07 Turf Rail Quick Change Attachment
Power Upgrades
Part No. Description
3PH217 Power Unit Upgrade to 3-Phase - 208V
3PH239 Power Unit Upgrade to 3-Phase - 230V
3PH469 Power Unit Upgrade to 3-Phase - 460V
Download the LE12-E15 Product Brochure
Download the LE12 Spec Sheet
Download the current LE12 Manual
