Challenger EV1020 Inground Lift

Regular price
Sale price
Regular price
Call for your special price 717-432-5672
Unit price
per

Description

Challenger’s electric hydraulic cassette-style 10,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1020 is available with either 3-stage front and rear arms or a fixed drive-on pad. Our added Quick Cycle™ models can rise in just 27 seconds and lower in only 17 seconds. Expand your service potential with our most versatile, easy-to-operate inground lift.

ALI/ETL certified.

Features & Benefits
• 10,000 lb. lift capacity

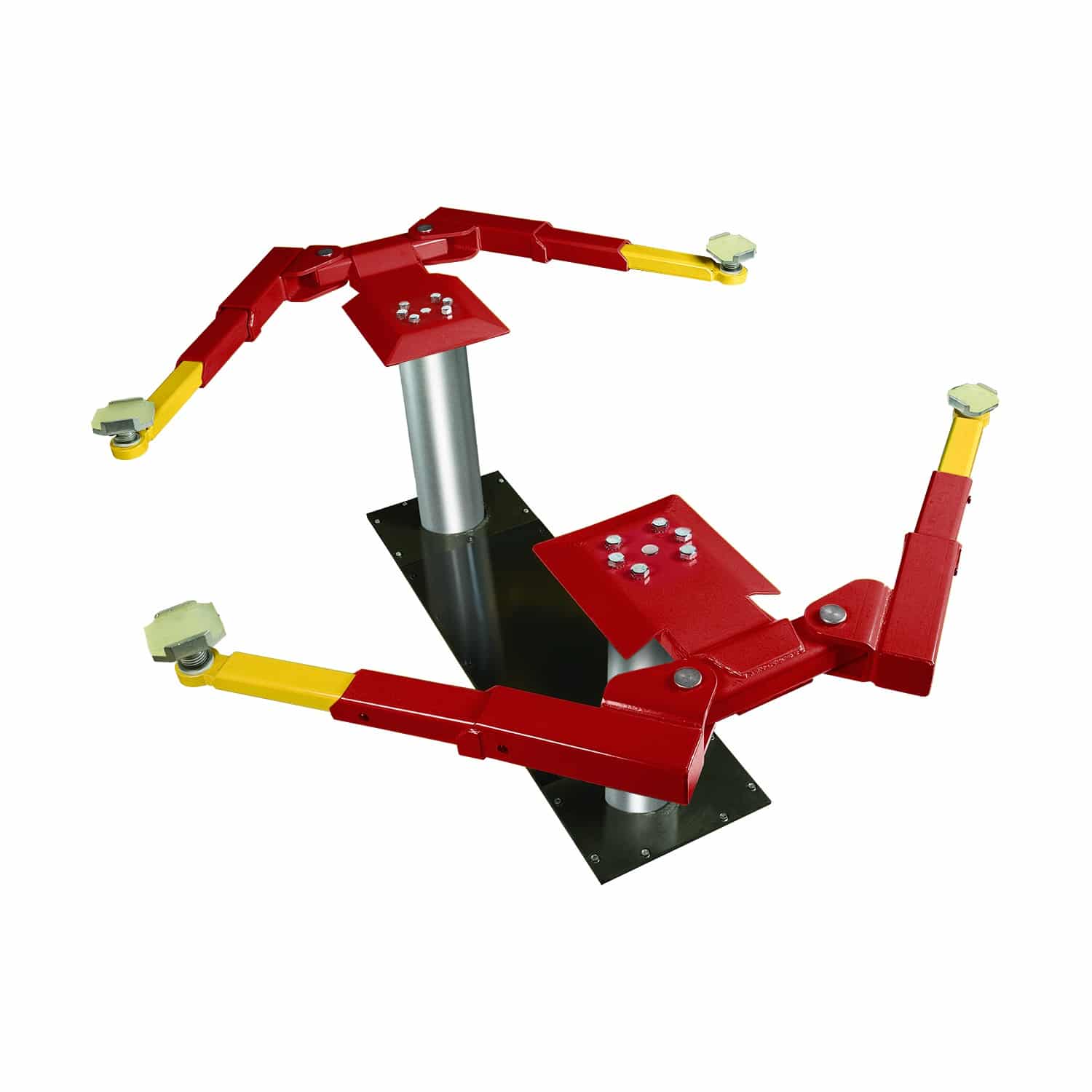

• 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential
• Also available with a drive-on style pad (XP9) to aid in quick vehicle spotting for express bays

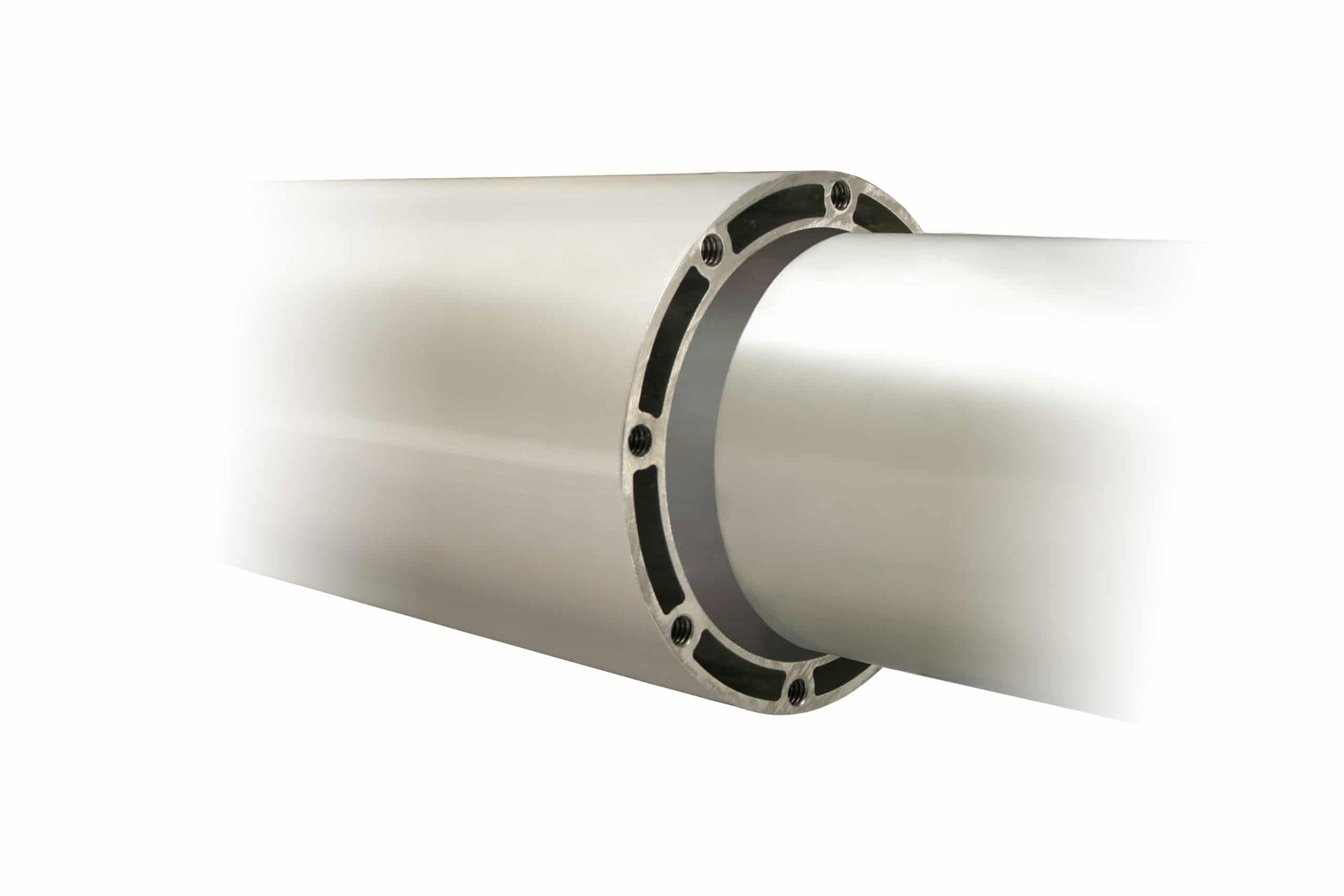

• 8 1/2” diameter chrome pistons provide greater stability under load

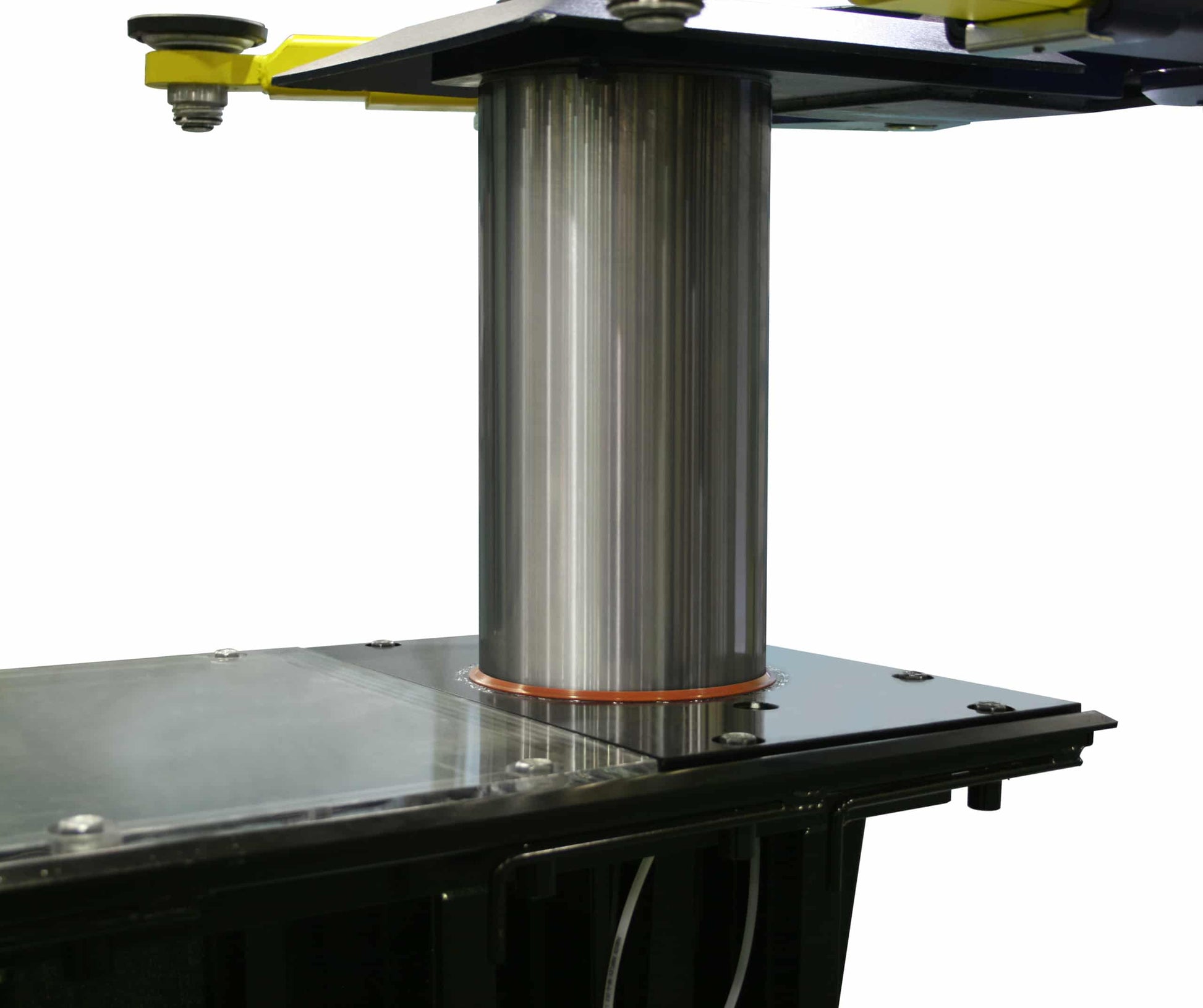

• Chrome non-breathing ram style cylinder provides for longer lift life
• Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
• Long bearing contact provides increased stability

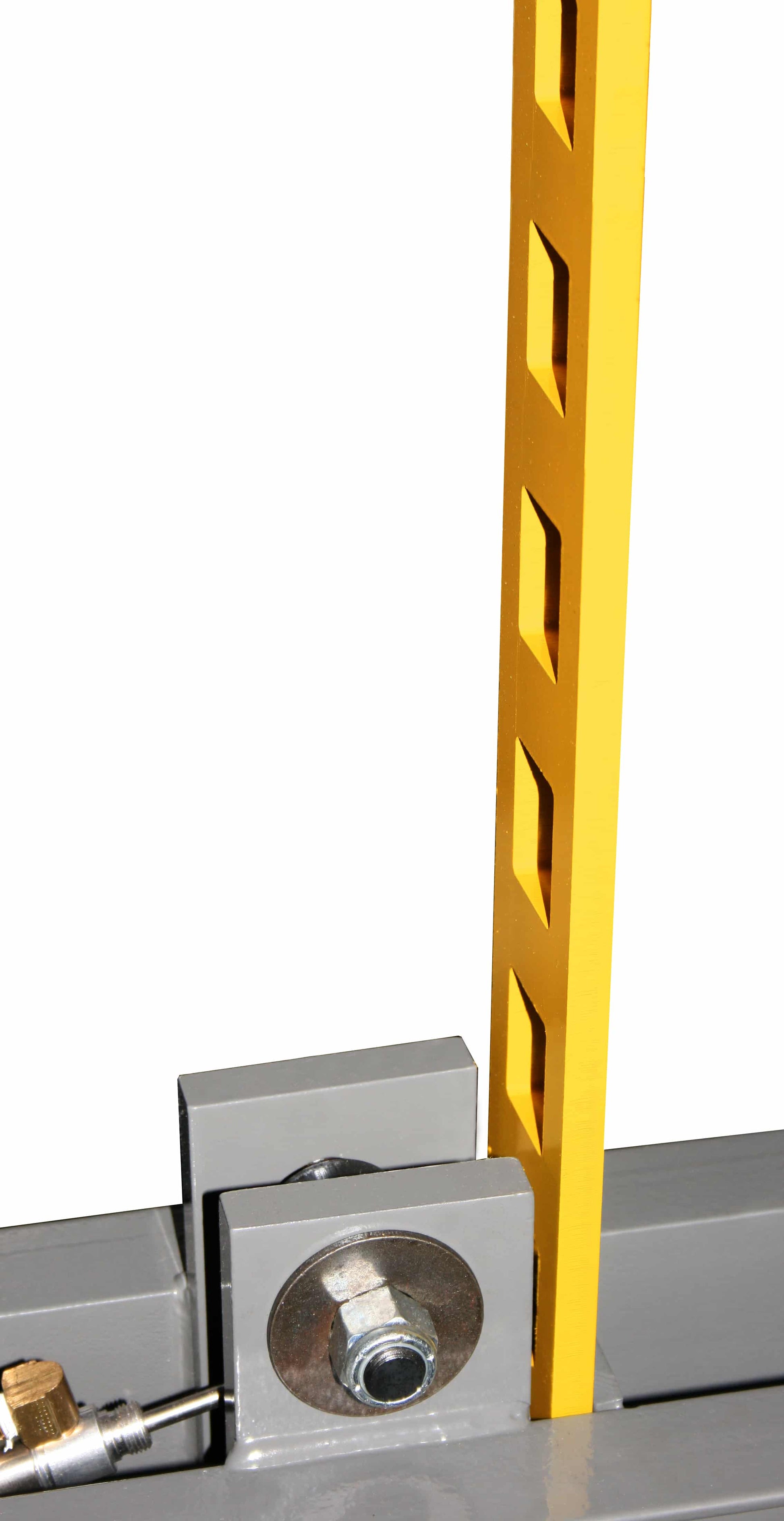

• Mechanical lock engages every 3? allowing ergonomic working height for technicians to increase productivity and minimize fatigue
• Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design

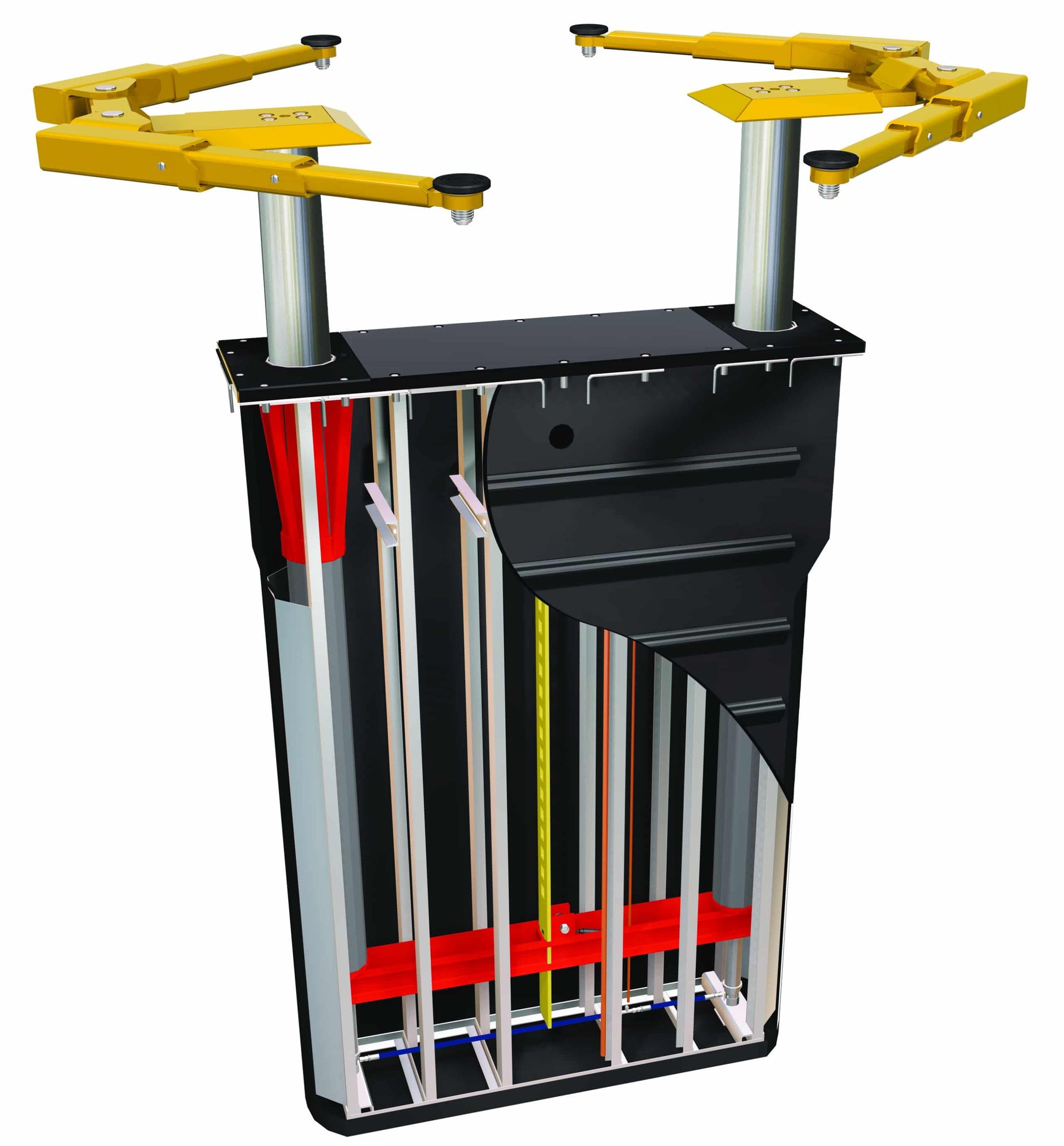

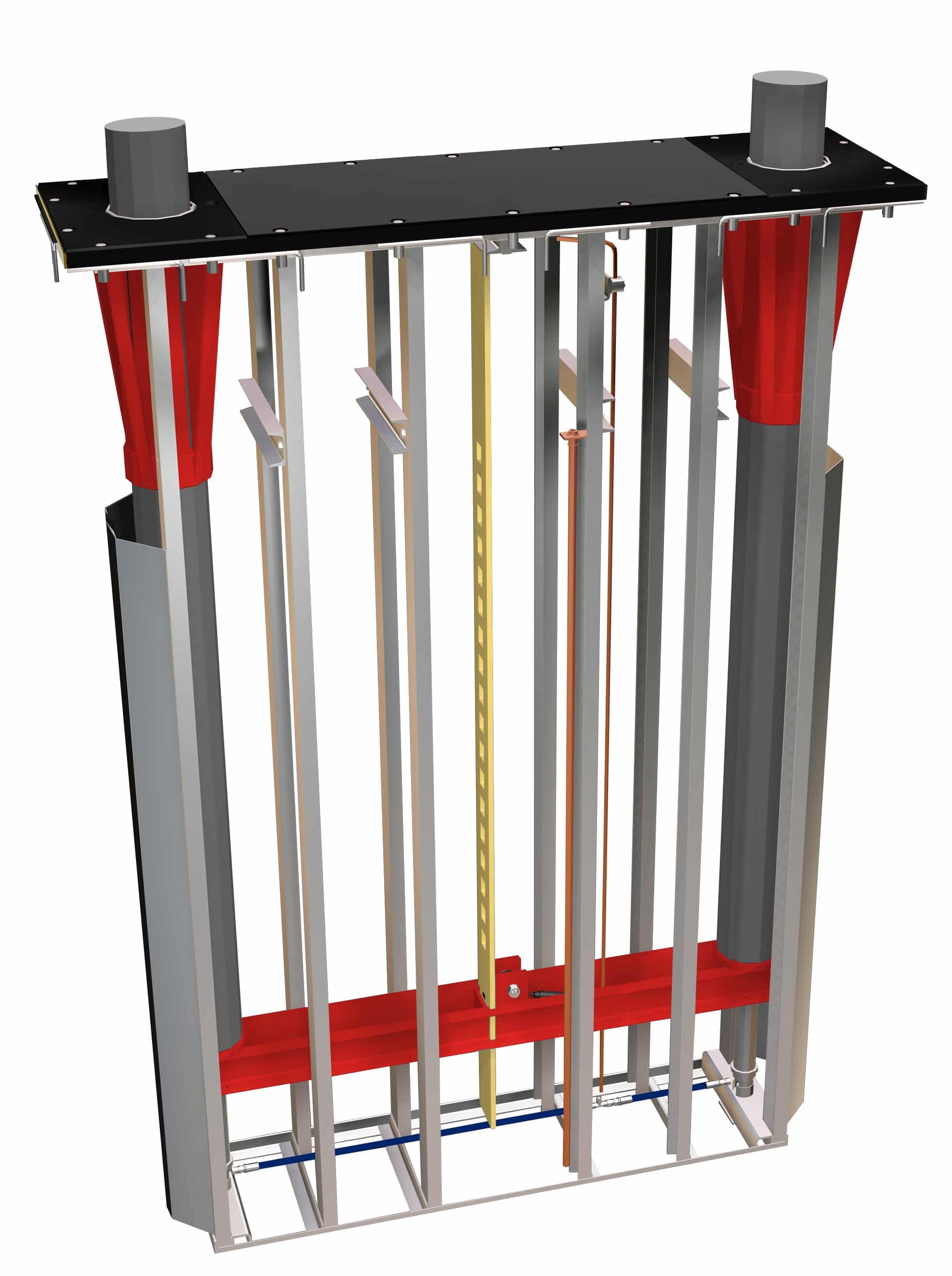

• Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
• Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
• 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
• Quick Cycle™ models reduce vehicle travel time by 30 percent
• Wide range of upgrades to further customize your fleet
• Premium powder coat finish on bolsters and arms provides long-lasting durability


Specs

Model Number EV1020 EV1020-QC EV1020XP9 EV1020XP9-QC
Lifting Capacity 10,000 lbs. 10,000 lbs. 9,000 lbs. 9,000 lbs.
Arms 3-stage front/3-stage rear 3-stage front/3-stage rear n/a n/a
Stroke 68” 68” 68” 68”
Rise Height 74” 74” 70” 70”
Width Overall 97" 97" 79.75” 79.75”
Drive-Thru Clearance 87” 87” - -
Reach (Arm Minimum) 19.625” 19.625” - -
Reach (Arm Maximum) 42.125” 42.125” - -
Screw Pad Height 3.875” - 6” 3.875” - 6” Minimum Pad Height: 2.25" Minimum Pad Height: 2.25"
Capacity 2,500 lbs. per arm 2,500 lbs. per arm 4,500 lb. per pad 4,500 lb. per pad
Guide Plunger Diam. 8.5” 8.5” 8.5” 8.5"
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 38 s 27 s 38 s 27 s
Air Required 90 - 120 psi 90 - 120 psi 90 - 120 psi 90 - 120 psi
ALI/ETL Certified Yes Yes Yes Yes
Super Structure Colors Red, Blue, Black Red, Blue, Black Black Black

Accessories
Part No. Description

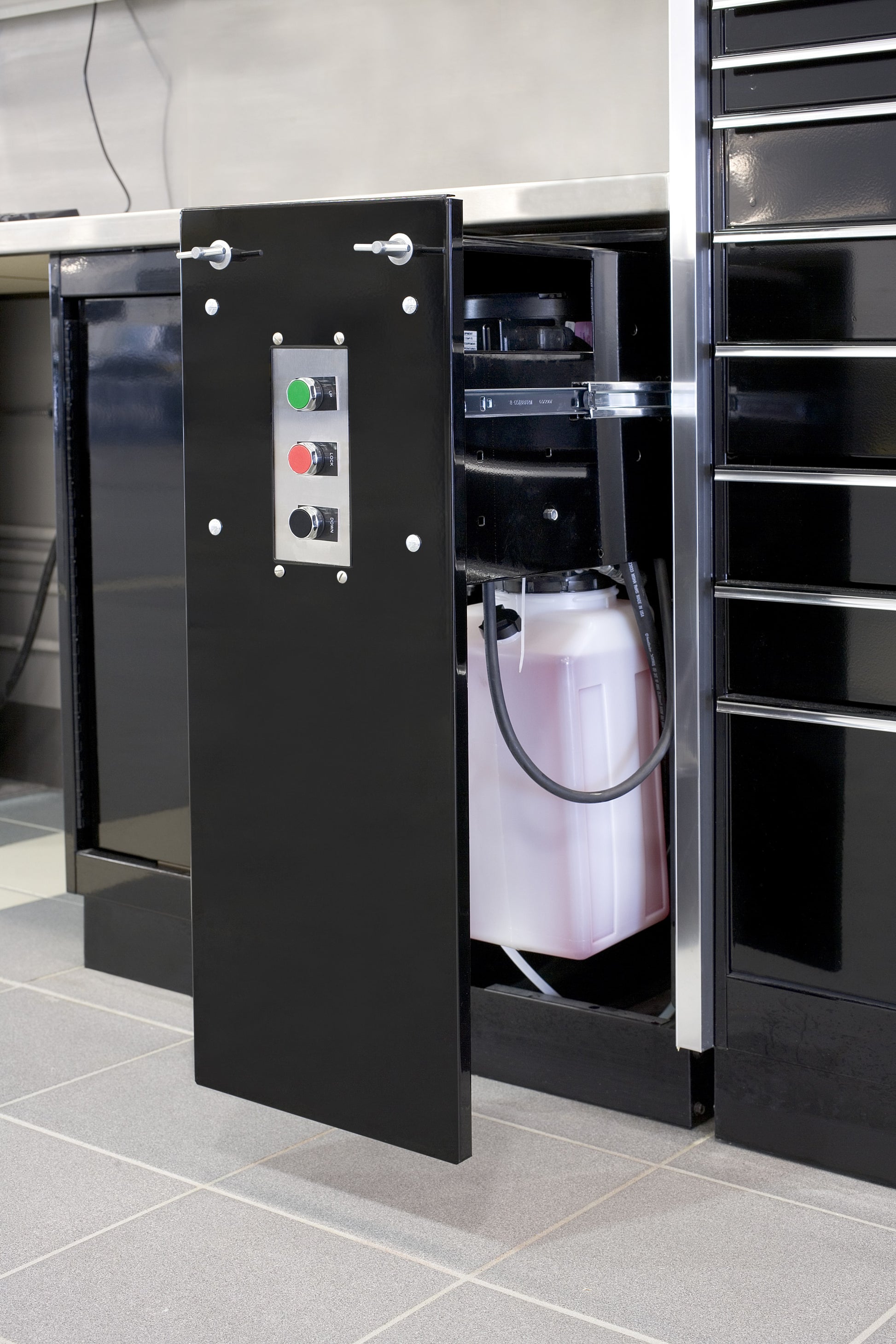

16902 Bench Mount Lever (BML)
10300 Pair of luxury car adapters
10313 Pair of 6" Stack Adapter Extensions
10315 Stack Adapter Kit - includes (4) 3 in. stack extensions, (2) 6 in. stack extensions & (2) organizer racks with hardware
15060 Floor-mounted Power Unit Stand
SD100 Cassette Lift Automatic Liquid Removal System
CSGREASE Extra Tube of Grease for Electric / Hydraulic Inground Lifts
3PHCS Power Unit Upgrade to 3-Phase
Download the EV Series Inground Lift Product Brochure
Download the EV1020 Spec Sheet
Download the current EV1020 Manual
Download the current EV1020 Quick Cycle Manual
