Challenger 4030 4-Post Lift

Challenger 4030 4-Post Lift

Regular price
Sale price
Regular price
Call for your special price 717-432-5672
Unit price
per

Description

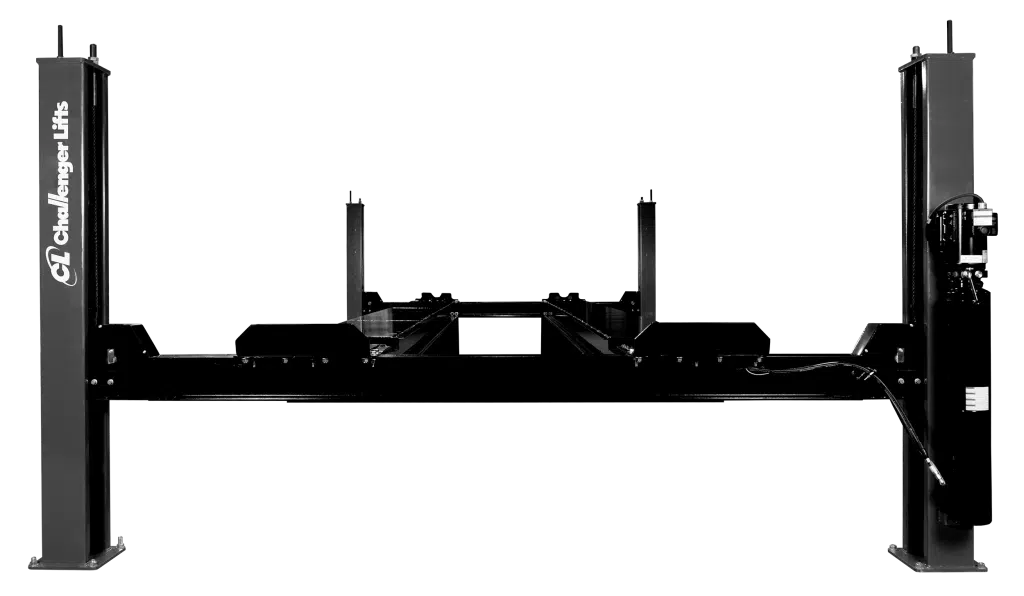

Challenger engineered our 30,000 lb. capacity 4-post 4030 series lift with safety and durability in mind. We also integrated our time-proven cable-driven lift system with heavy-duty steel sheaves and cables for optimal performance. A single-point air actuated lock release makes these lifts simple to use. Choose between general service or alignment deck models as well as three lengths to fit your shop’s needs. We also offer a range of optional accessories.

ALI/ETL certified.

Features & Benefits
• 30,000 lb. lift capacity
• Closed front design with 244.5″, 281″, or 317” max wheelbase
• 71.75” rise height provides maximum head room for working underneath vehicles
• Multiple locking positions for a variety of alignment and general service tasks
• Compatible with the industry’s latest camera imaging alignment systems
• Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
• Recessed turn plate pockets for easy drive-on (Alignment models only)
• Single-point air actuated lock release disengages column locks simultaneously
• Durable diamond-plate approach ramps for positive vehicle traction
• Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drain pan (sold separately)

Specs

Model Number 4030SFX 4030EFX 4030XFX 4030SAX 4030EAX 4030XAX
Lifting Capacity 30,000 lbs. 30,000 lbs. 30,000 lbs. 30,000 lbs. 30,000 lbs. 30,000 lbs.
Max. Wheelbase 1 244.5” 281” 317” 244.5” 281” 317”
Rise Height 71.75” 71.75” 71.75” 71.75” 71.75” 71.75”
Overall Length 308” 344” 380” 308” 344” 380”
Overall Width 172.75” 172.75” 172.75” 172.75” 172.75” 172.75”
Inside Columns 152” 152” 152” 152” 152” 152”
Between Columns 246.125” 282.625” 318.625” 246.125” 282.625” 318.625”
Height of Columns 92.25” 92.25” 92.25” 92.25” 92.25” 92.25”
Height of Runways 8.5” 8.5” 8.5” 8.5” 8.5” 8.5”
Width of Runways 24” 24” 24” 24” 24” 24”
Width Between Runways 46” - 52” 46” - 52” 46” - 52” 46” - 52” 46” - 52” 46” - 52”
Air Supply Required 90 - 120 psi 90 - 120 psi 90 - 120 psi 90 - 120 psi 90 - 120 psi 90 - 120 psi
Motor / Voltage (Single Phase Std) 3HP, 208v - 230v 3HP, 208v - 230v 3HP, 208v - 230v 3HP, 208v - 230v 3HP, 208v - 230v 3HP, 208v - 230v
Speed of Rise TBD TBD TBD TBD TBD TBD
Max 2 Wheel Alignment - - - 219.5” 256” 292”
Min Recomm. Bay Size 28’ x 17’ 31’ x 17’ 34’ x 17’ 28’ x 17’ 31’ x 17’ 34’ x 17’
ALI/ETL Certified Yes Yes Yes Yes Yes Yes
Colors Available Red, Blue Red, Blue Red, Blue Red, Blue Red, Blue Red, Blue


Accessories
Alignment Accessories
Part No. Description
RJ15 Air/Hydraulic Rolling Jack - 15,000 lb. capacity
44AK30 Internal air line kit for dual rolling jack operation
10500HD Turning radius gauges for alignment racks
10500HD Black Powder Coat Turning Radius Gauges for (4030 Alignment Racks)
Ramps
Part No. Description
4030-RA Drive-thru ramp assemby
4030-RA6 6' Drive-thru ramp assembly
Productivity Accessories
Part No. Description
10310 Air/electric workstation with filter/lubricator/regulator
