Challenger SX14 Series Scissor Lift
Challenger SX14 Series Scissor Lift
Regular price
$42,285.62 USD
Regular price
$66,071.28 USD
Sale price
$42,285.62 USD
Unit price
/
per
Couldn't load pickup availability
Description

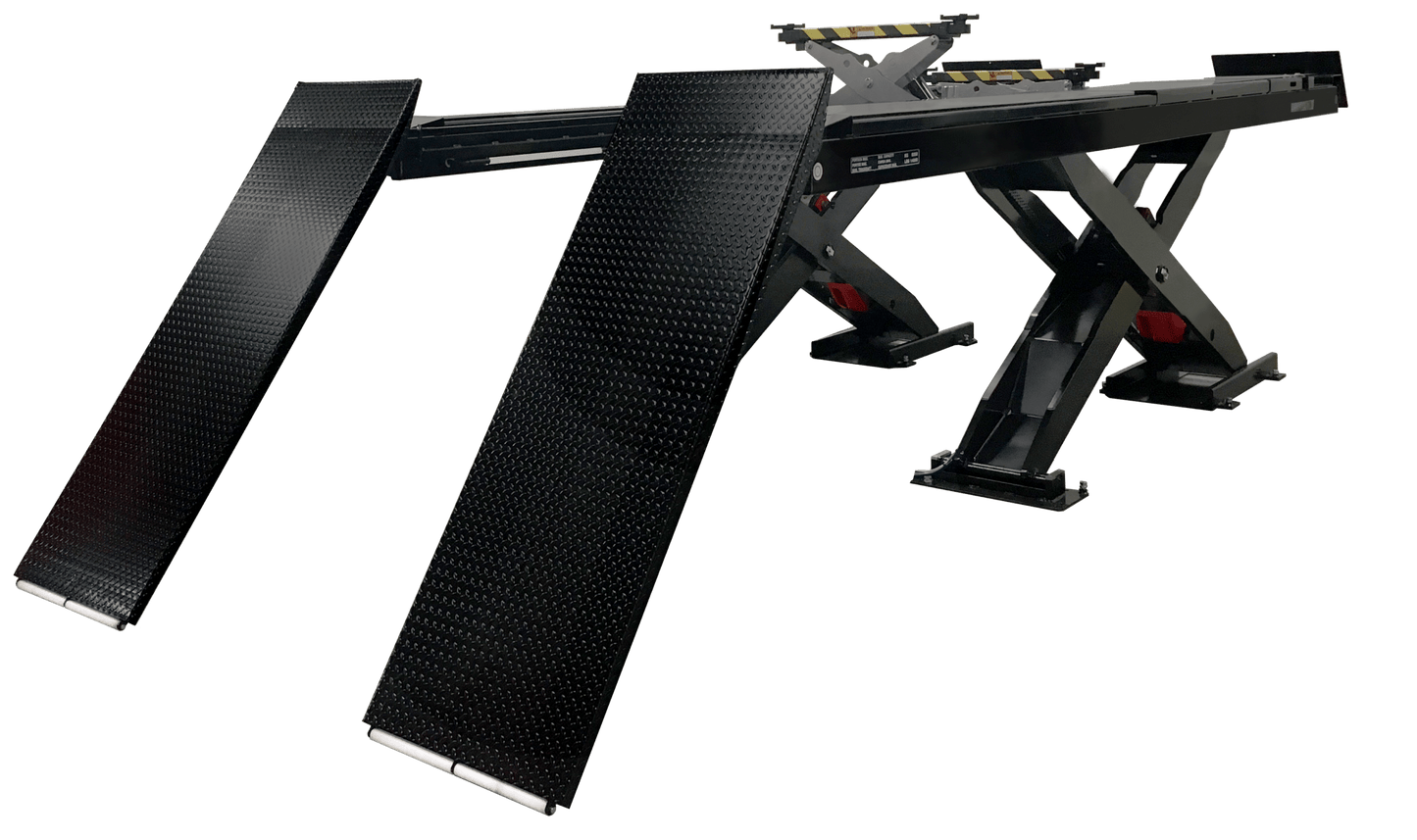

Challenger SX14 series scissor lifts are easy to operate and load. Adjustable turn plates allow for a wider range of wheelbase alignments. The SX14 features LED lighting, single locking point rear slip plates, photo cell to ensure runway synchronization and optional extended ramps that accommodate low-clearance vehicles. These alignment racks are available in flush or surface-mounted models. Kit includes the lift, two rolling jacks, adjustable turn plates, and an airline kit for dual jack operation..
Features & Benefits

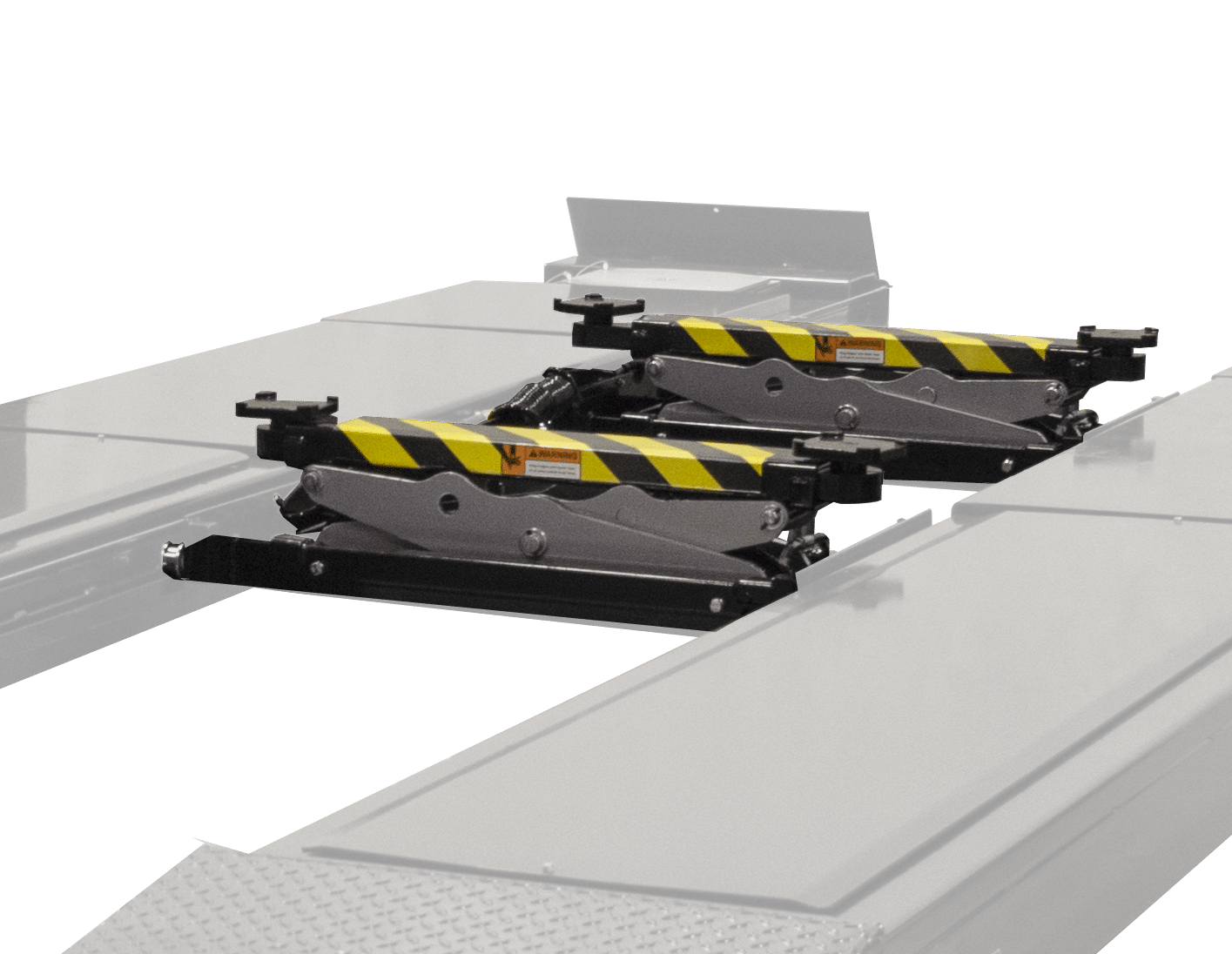

• Package includes two (2) rolling jacks, turn plates, and an airline kit for dual jack operation
• Extra wide runway width accommodates single and dual rear wheel vehicles
• Photo cell ensures runway synchronization

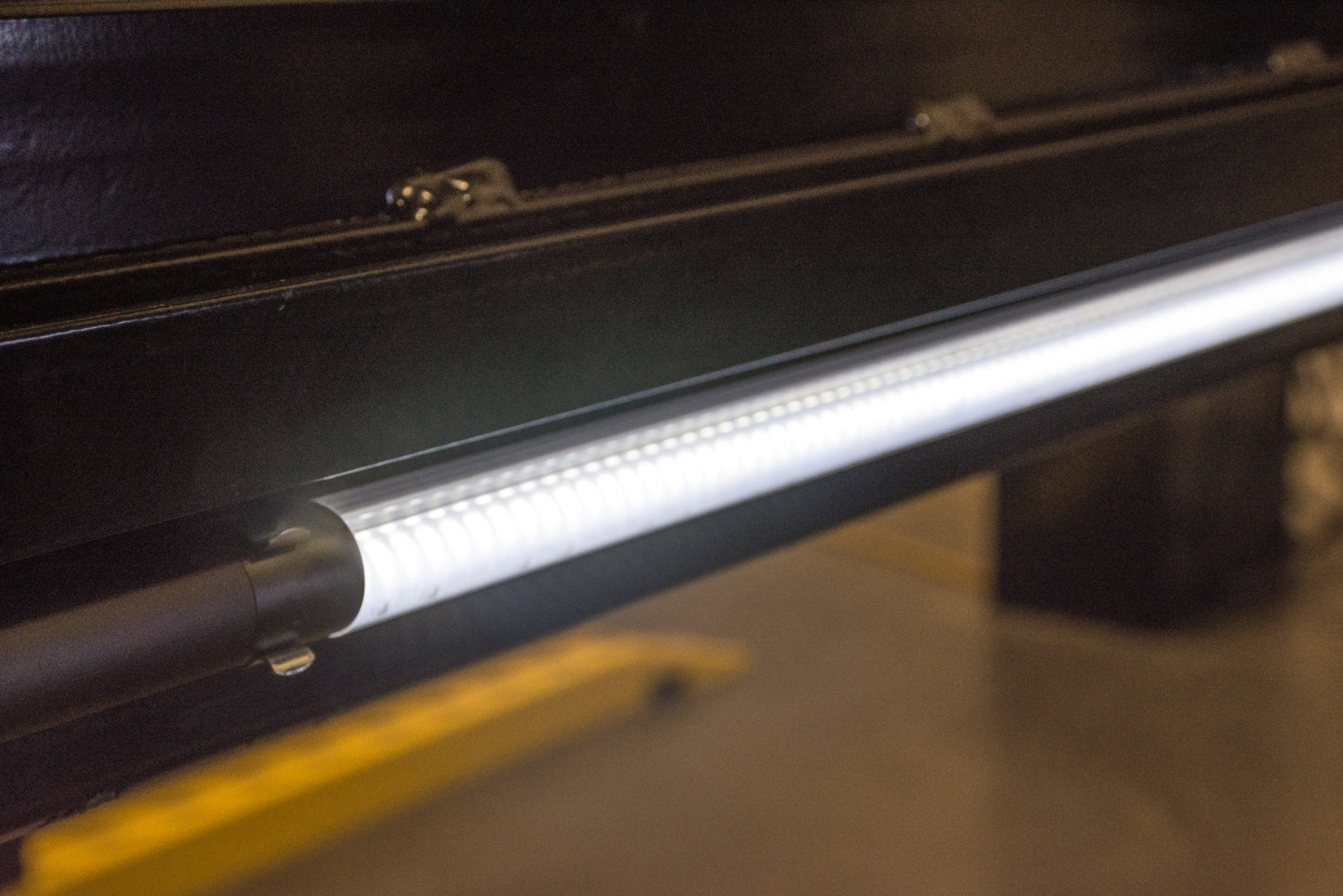

• Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
• Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
• Twin hydraulic cylinders provide smooth operation
• Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
• Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
• Powder coat finish provides long-lasting durability
• Can be mounted above ground or flush
• ALI certified
Specs
| Model Number | SX14 | SX14-ER | SX14-FM |
|---|---|---|---|
| Description | Standard | Extended Ramps | Flush Mount |
| Lifting Capacity* | 14,000 lbs. | 14,000 lbs. | 14,000 lbs. |
| Rise Height | 77” | 77" | 66.5" |
| Overall Length | 265” | 283" | 265" |
| Overall Width | 91.25” | 91.25” | 91.25” |
| Width of Runways | 25.5” | 25.5” | 25.5” |
| Between Runways | 40” | 40” | 40” |
| Lowered Height | 10.5” | 10.5” | - |
| Maximum Wheelbase | 183” | 183” | 183” |
| Wheel Alignment (Max.) | 176" | 176" | 176" |
| Wheel Alignment (Min.) | 70.75" | 70.75" | 70.75" |
| Motor | 3 HP | 3 HP | 3 HP |
| Voltage (Single Phase Std.) | 208-240v (23 FLA) | 208-240v (23 FLA) | 208-240v (23 FLA) |
| Speed of rise | 75 s | 75 s | 75 s |
| Air Required (filtered/lubricated) | 90 - 120 psi (20CFM) | 90 - 120 psi (20CFM) | 90 - 120 psi (20CFM) |
| Min. Recommended Bay Size | 14' x 28' | 14' x 28' | 14' x 28' |
| ALI/ETL Certified | Yes | Yes | Yes |
| Color Available | Black | Black | Black |
