Challenger DX77 Scissor Lift

Regular price
Sale price
Regular price
Call for your special price 717-432-5672
Unit price
per

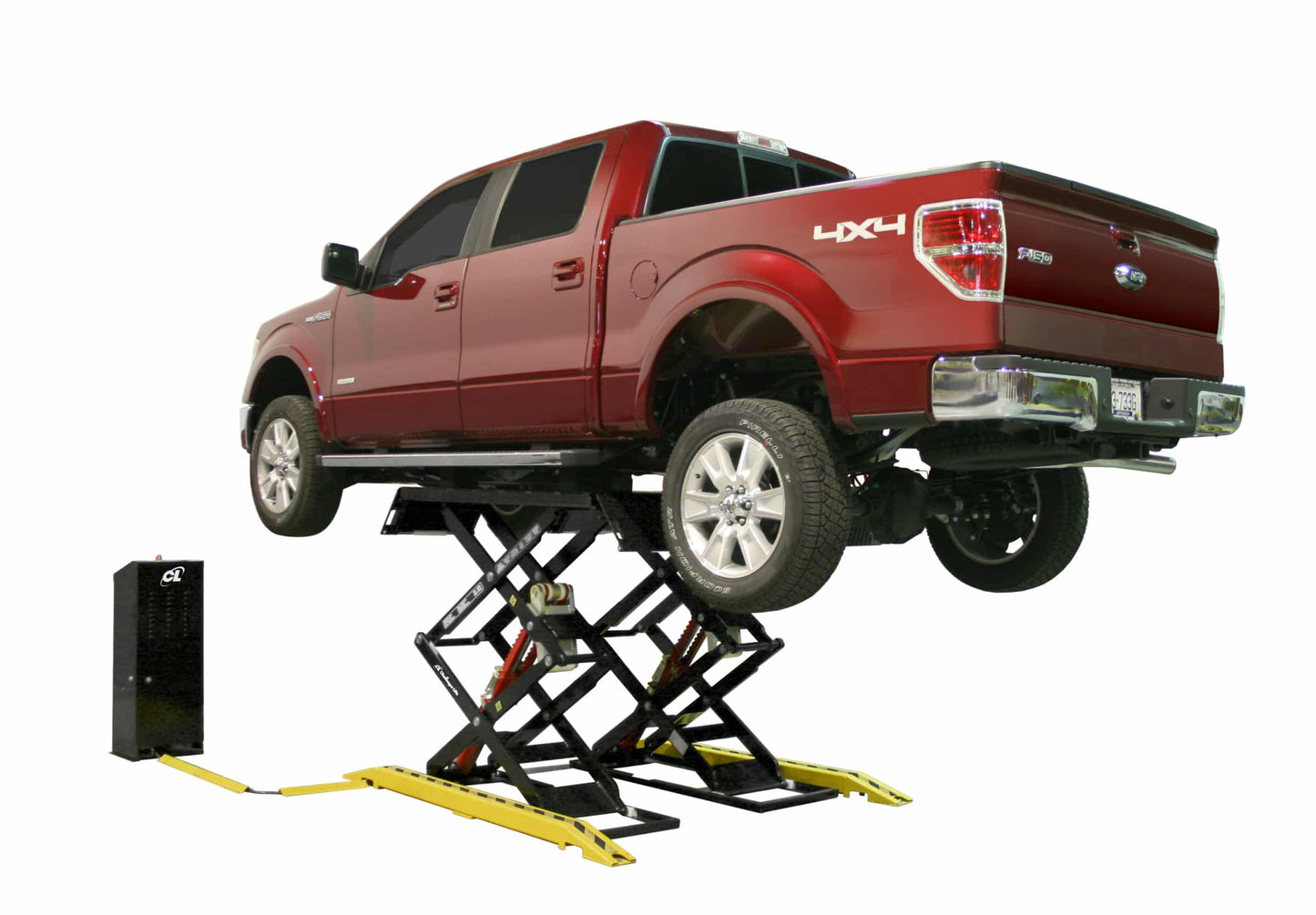

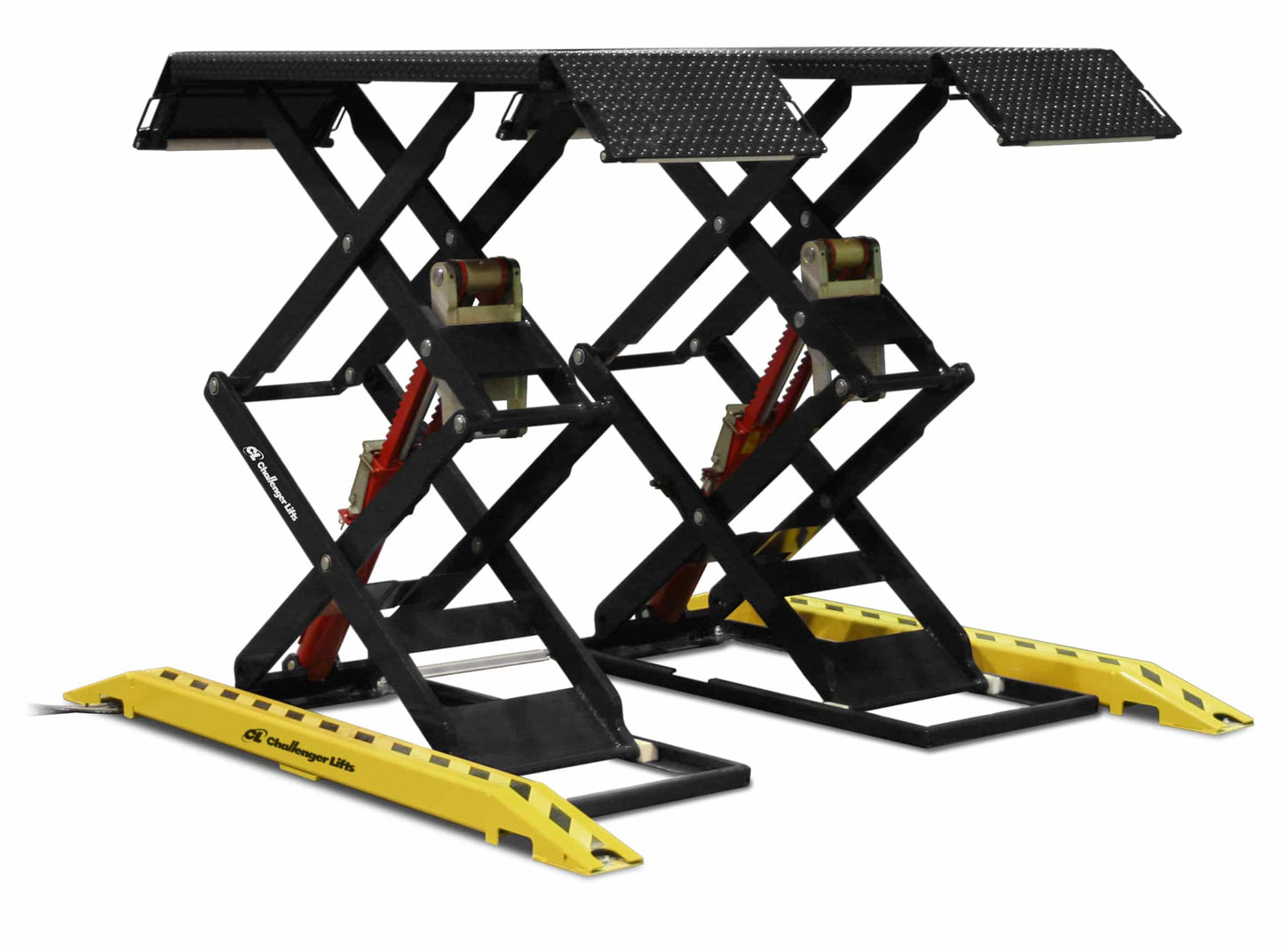

Challenger engineered our 7,700 lb. capacity scissor lift with efficiency and productivity in mind. Our DX77 can easily lift all makes and models (within rated capacity) with a synchronized hydraulic system. The DX77 also offers free access all around the lifted vehicle and between platforms, with a cross-member free design providing an uncluttered and hazard-free work area. Choose to mount the DX77 either above ground or flush.

ALI/ETL certified.

Features & Benefits:

• 7,700 lb. lifting capacity
• 74.5” rise height (70″ if flush mounted)
• Reinforced diamond-plate front and rear access ramps are designed to easily flip up and lock to extend the platform load length, which will accommodate longer wheelbase vehicles
• Double scissor lifting for taller rise allows more overall working clearance

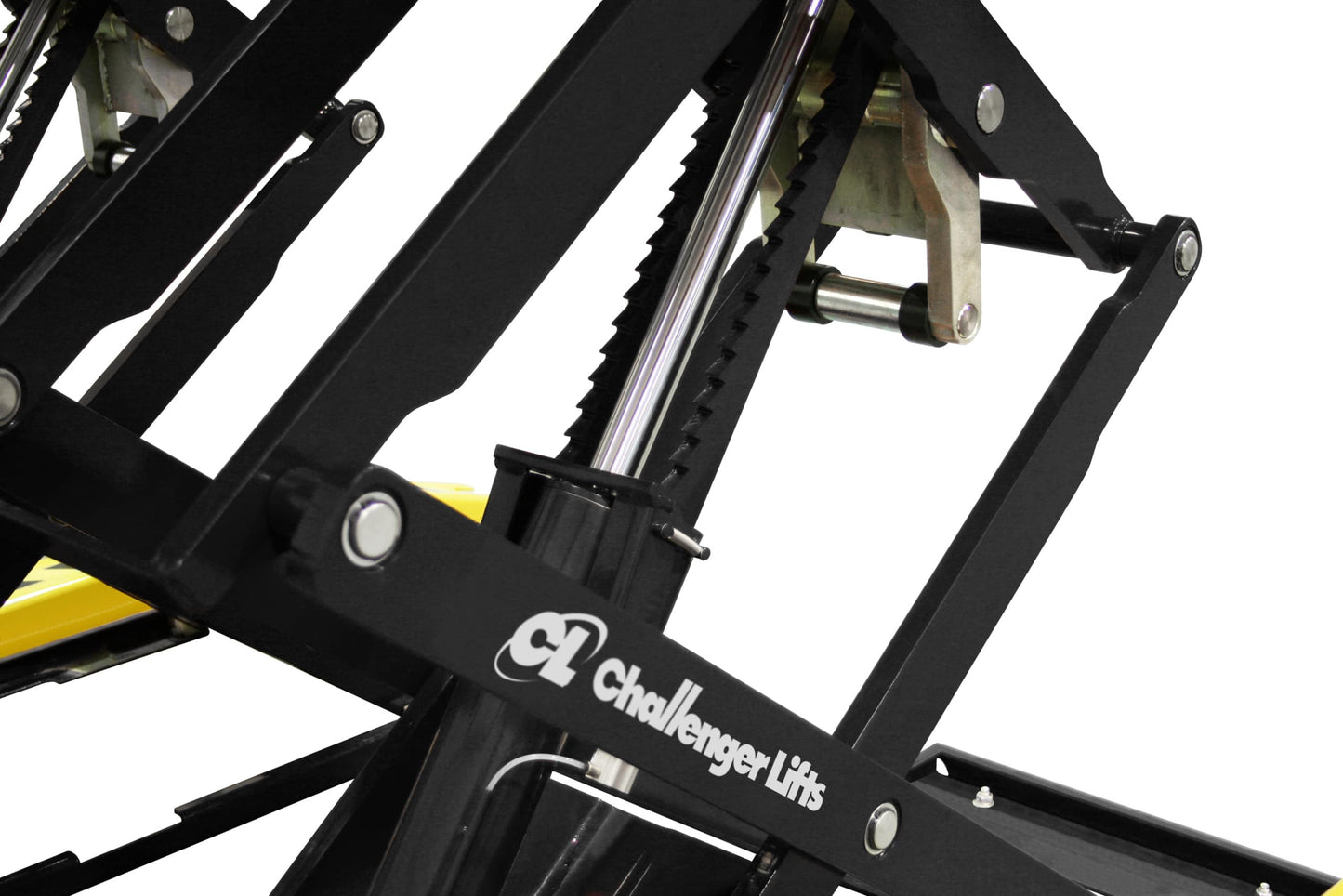

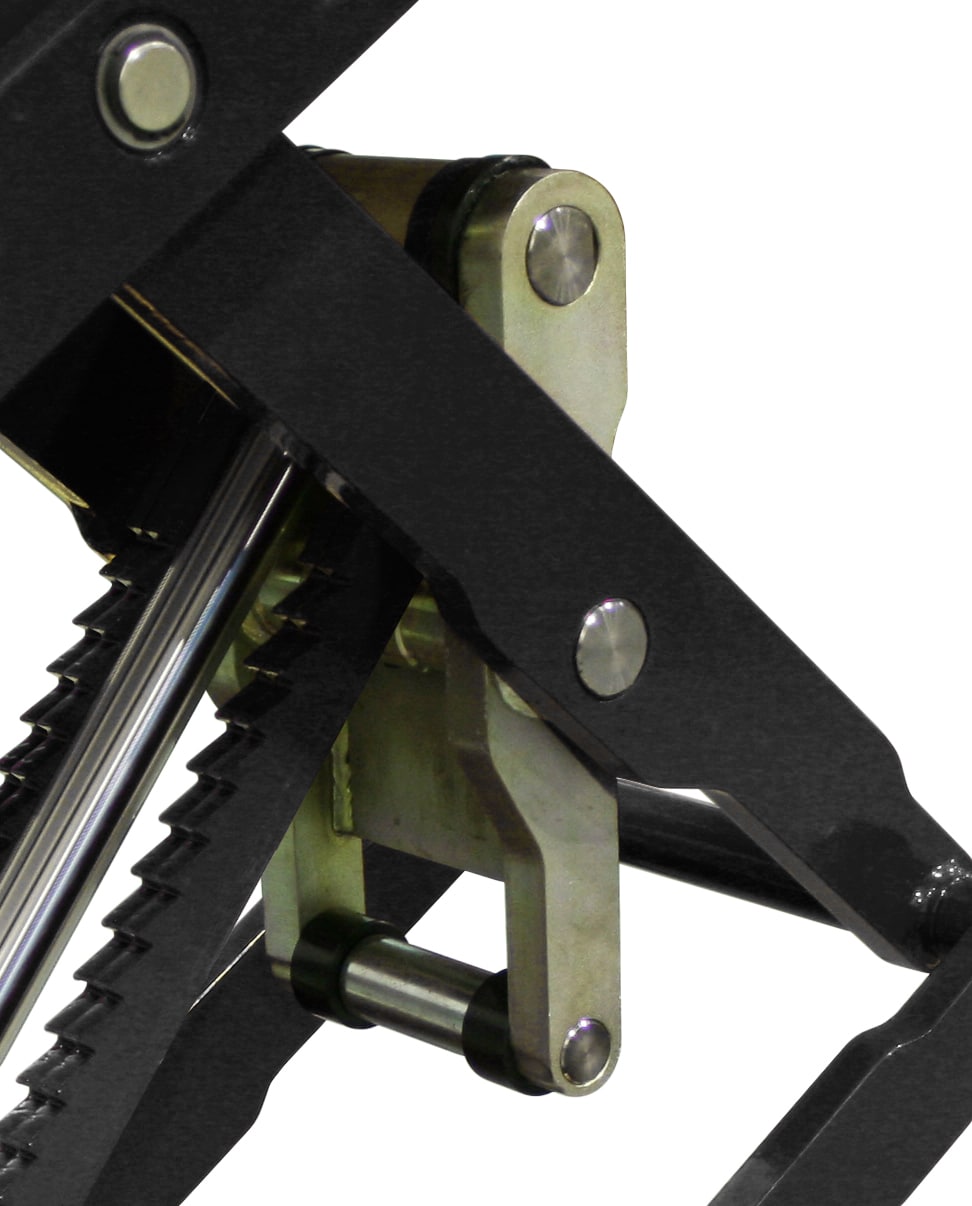

• Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
• Power unit console includes three simple push button controls
• 3” rubber spotting blocks (set of 4) and 1.5” rubber spotting blocks (set of 4) included
• Extended ramp kit available for low profile vehicles
• Powder coat finish provides long-lasting durability

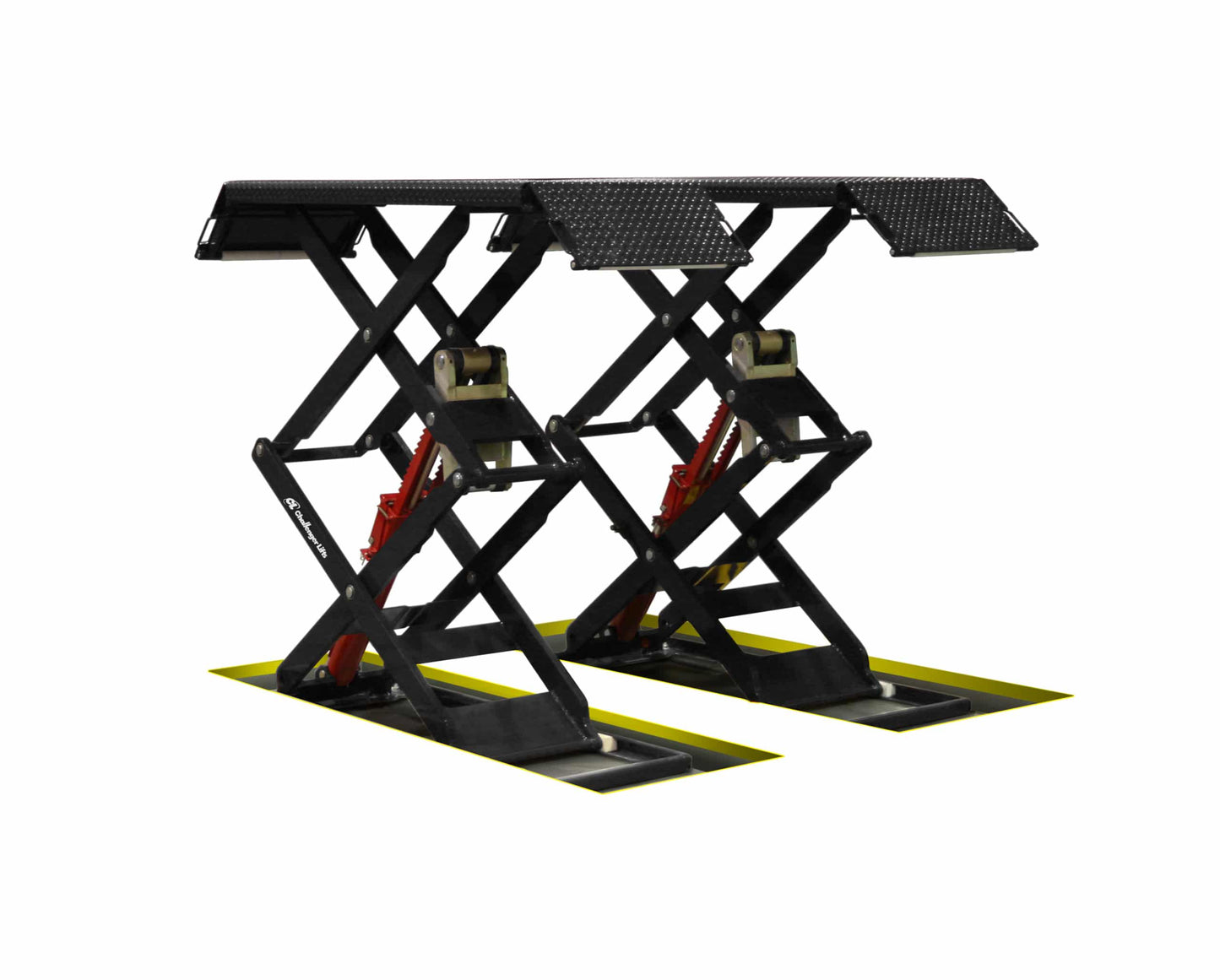

• Can be mounted above ground or flush


Specs:

Model Number DX77 DX77R
Lifting Capacity 7,700 lbs.
Installation Standard Flush Mount
Rise Height 74.5” 70”
Overall Length 83.25”
Overall Width 82” 69.5”
Platform Length 59”
Platform Width 24.5”
Width Between Platforms 21 - 27”
Ramp Length 11.75”

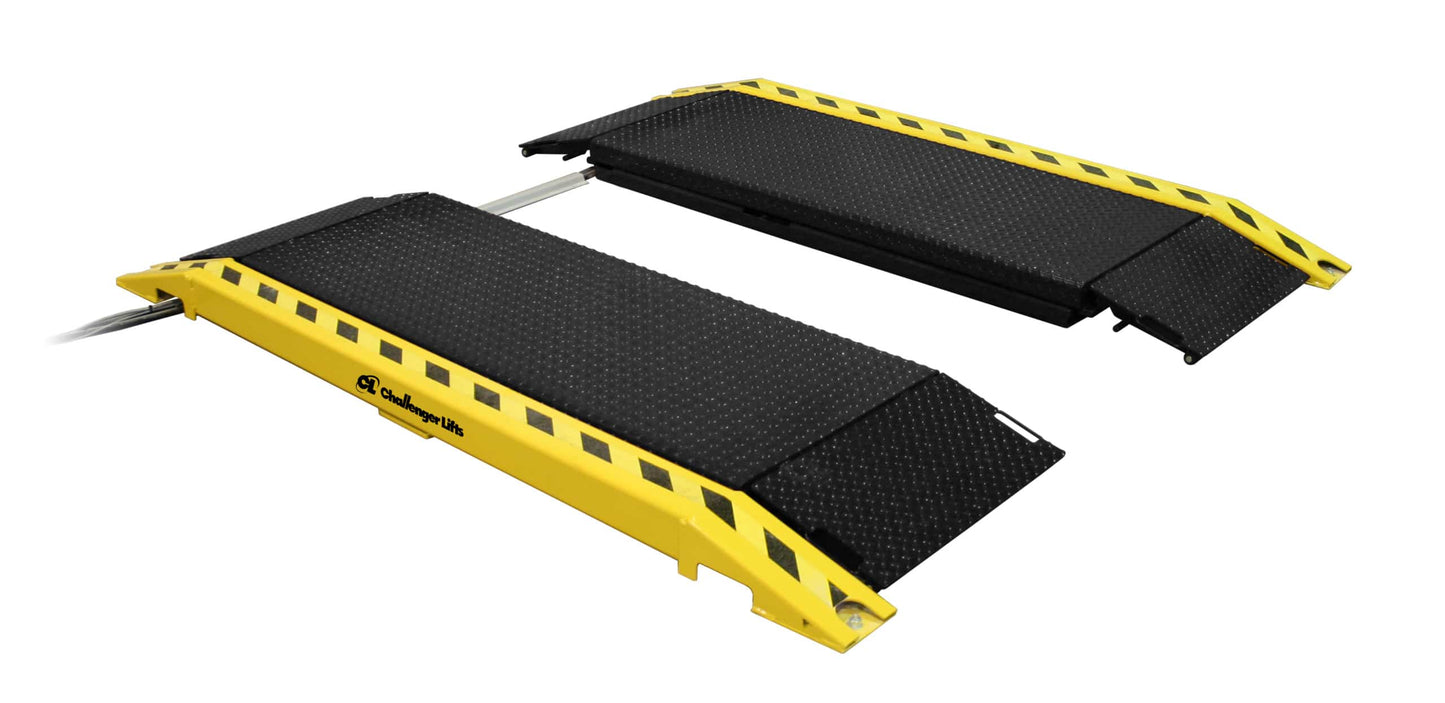

Lowered Height 4.5” -
Motor 2HP, Single Phase, 60Hz
Voltage 208/220v
Air Supply Required 90 - 120 psi
Speed of Rise 43 s
Max Load per Platform 3,850 lbs.
Colors Available Black
